adds a colored and rotated multigonal shape to a plot

draws and colors a rotated shape with equal-sized vertices ; color can be a palette.

filledmultigonal(mid = c(0, 0), rx = 1, ry = rx, nr = 4,
                 col = femmecol(100), values = NULL,
                 zlim = NULL, lwd = 2, lcol = NA, angle = 0, ...)

Arguments

mid

midpoint of multigonal.

rx

horizontal radius.

ry

vertical radius.

nr

number of sides.

col

color palette to be used; also allowed are two extremes or one value.

values

if not NULL, a matrix providing (radius,z-values) couples, used for coloring.

zlim

Only if values is not NULL: the minimum and maximum z values for which colors should be plotted, defaulting to the range of the finite values of the second column of values.

lwd

width of external line.

lcol

line color.

angle

angle of rotation, in degrees.

...

arguments passed to R-function polygon.

Author

Karline Soetaert <karline.soetaert@nioz.nl>

Details

Coloration proceeds from midpoint to external edge

rx,ry: horizontal and vertical radiusses of the shape. Here "horizontal" and "vertical" denote the position BEFORE rotation

values: if not NULL, a matrix providing (radius,z-values) couples, used for coloring. Here radius are positive values denoting the relative distance between the shapes centre and edge. The radiusses are rescaled to be in [0,1] if needed. z-values (2nd column of values) together with zlim and col denote the coloration level.

Colors in col will be interpolated to the z-values and used to color an interval as given by the input radiusses.

Value

returns, as invisible a list containing "xyouter" and "xyinner", the points that define the outer and inner ellipse.

See also

filledrectangle, filledshape, filledcylinder, filledellipse

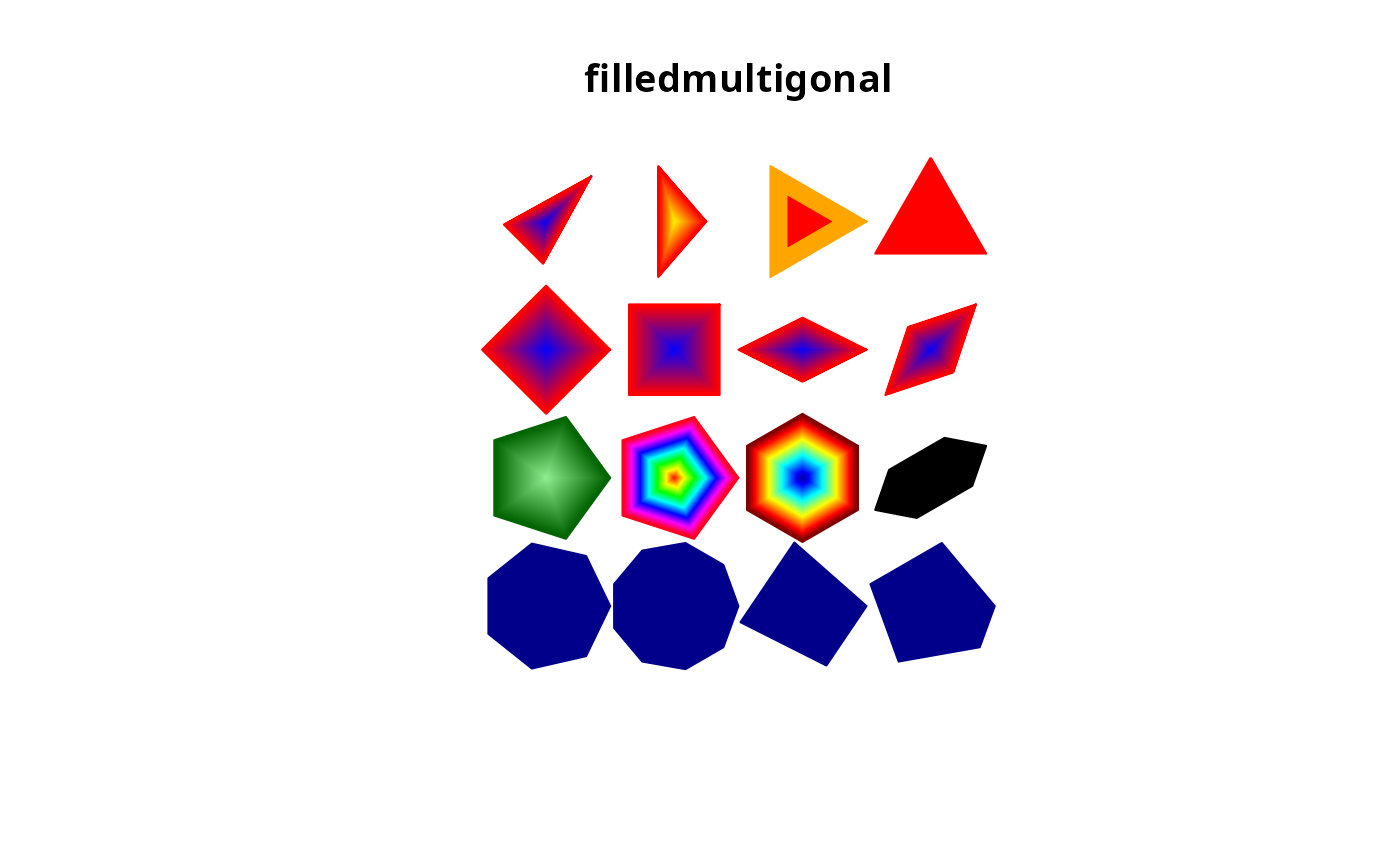

Examples

emptyplot(c(-1, 1), main = "filledmultigonal")

filledmultigonal(rx = 0.25, ry = 0.125, nr = 3, mid = c(-0.75, 0.75),
            angle = 45, col = shadepalette("red", "blue", n = 50))
filledmultigonal(rx = 0.125, ry = 0.25, nr = 3, mid = c(-0.25, 0.75),
            col = shadepalette("red", "yellow", n = 50))
filledmultigonal(rx = 0.25, ry = 0.25 , nr = 3, mid = c(0.25, 0.75),
            col = c("red", "orange"))
filledmultigonal(rx = 0.25, ry = 0.25 , nr = 3, mid = c(0.75, 0.75),
            angle = 90,  col = "red")

filledmultigonal(rx = 0.25, ry = 0.25, nr = 4, mid = c(-0.75, 0.25),
            angle = 0, col = shadepalette("red", "blue", n = 50))
filledmultigonal(rx = 0.25, ry = 0.25, nr = 4, mid = c(-0.25, 0.25),
            angle = 45, col = shadepalette("red", "blue", n = 50))
filledmultigonal(rx = 0.25, ry = 0.125, nr = 4, mid = c(0.25, 0.25),
            angle = 0, col = shadepalette("red", "blue", n = 50))
filledmultigonal(rx = 0.25, ry = 0.125, nr = 4, mid = c(0.75, 0.25),
            angle = 45, col = shadepalette("red", "blue", n = 50))

filledmultigonal(rx = 0.25, ry = 0.25, nr = 5, mid = c(-0.75, -0.25),
            angle = 0, col = shadepalette("darkgreen", "lightgreen", n = 50))
filledmultigonal(rx = 0.25, angle = 0, nr = 5, mid = c(-0.25, -0.25),
            col = rainbow(50))
filledmultigonal(rx = 0.25, angle = 30, nr = 6, mid = c(0.25, -0.25),
            col = femmecol(50))
filledmultigonal(rx = 0.25, ry = 0.125, angle = 30, nr = 6, mid = c(0.75, -0.25),
            col = "black")

filledmultigonal(rx = 0.25, col = "darkblue", nr = 7, mid = c(-0.75, -0.75))
filledmultigonal(rx = 0.25, col = "darkblue", nr = 9, mid = c(-0.25, -0.75))
filledmultigonal(rx = 0.25, col = "darkblue", nr = 3.7, mid = c(0.25, -0.75))
filledmultigonal(rx = 0.25, col = "darkblue", nr = 4.5, mid = c(0.75, -0.75))
