adds a colored and rotated cylinder to a plot

adds a rotated and colored cylinder to a plot; color can be a palette

filledcylinder(rx = 1, ry = rx, len = 1, col = femmecol(100),
              lcol = NA, lwd = 2, lcolint = NULL, ltyint = 1,
              lwdint = lwd, mid = c(0,0), angle = 0, delt = 1,
              dr = 0.01, topcol = NULL, botcol = NULL, ...)

Arguments

rx

horizontal radius.

ry

vertical radius.

len

length.

col

color palette to be used; also allowed are two extremes or one value.

lcol

line color on external surface.

lwd

only if lcol!=NA, width of external line.

lcolint

only if lcol!=NA, line color on internal (hidden) surface.

ltyint

only if lcol!=NA, line type on internal (hidden) surface.

lwdint

only if dlcol!=NA, line width on internal (hidden) surface.

mid

midpoint of cylinder.

angle

rotation angle, degrees.

delt

increase factor, from left to right.

dr

size of segments, in radians, to draw top/bottom ellipse (decrease for smoother).

topcol

color (palette) of top (right) surface.

botcol

color (palette) of bottom (left) surface.

...

arguments passed to function filledellipse.

Author

Karline Soetaert <karline.soetaert@nioz.nl>

Details

When angle = 0 (the default), the cylinder is parallel to the x-axis

rx and ry are the horizontal and vertical radiusses of the bordering ellipses. Here "horizontal" and "vertical" denote the position BEFORE rotation

if delt > 1, the width of the cylinder will increase from left to right.

Examples

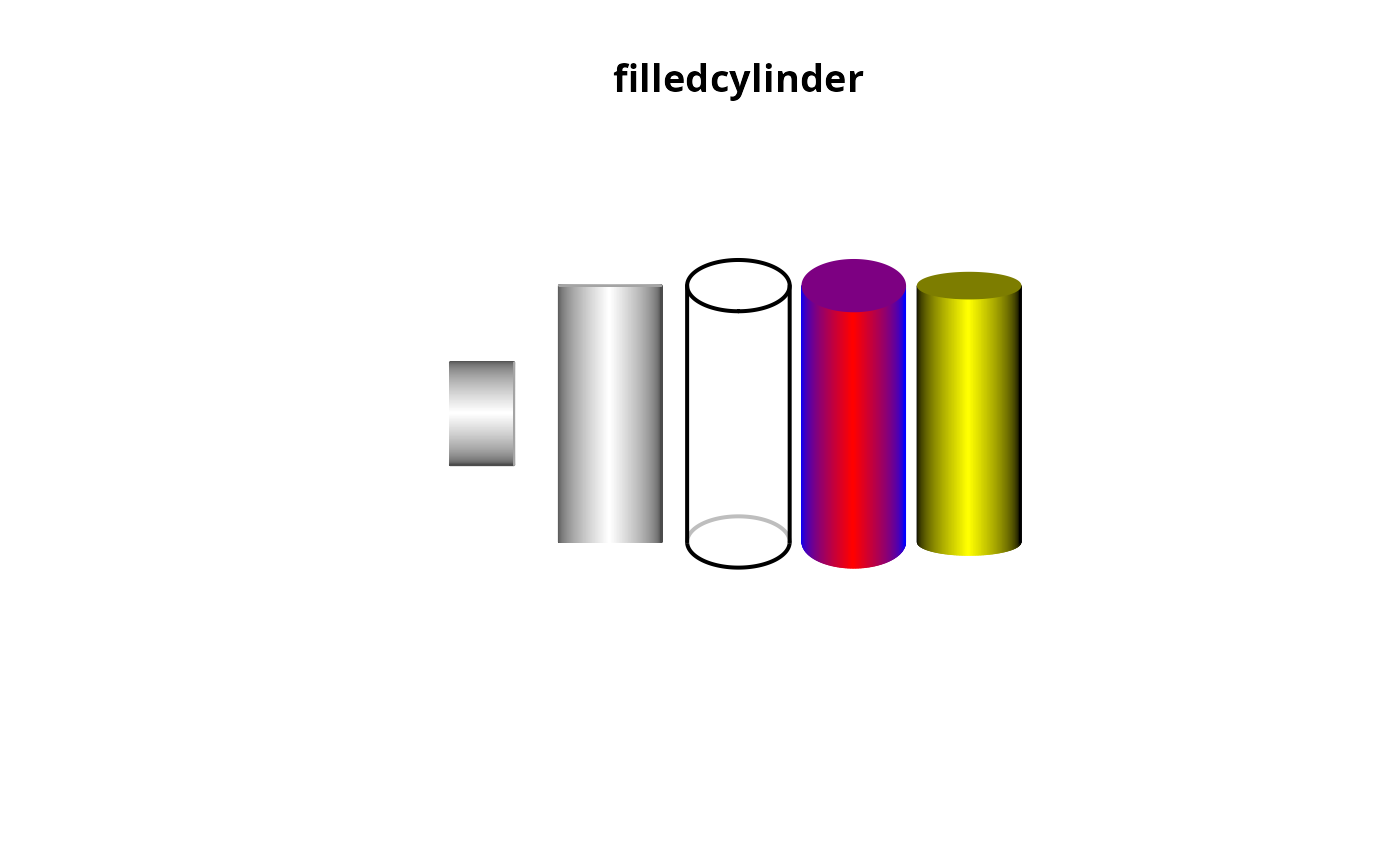

emptyplot(c(-1.2, 1.2), c(-1, 1), main = "filledcylinder")
col  <- c(rev(greycol(n = 50)), greycol(n = 50))
col2 <- shadepalette("red", "blue", n = 50)
col3 <- shadepalette("yellow", "black", n = 50)
filledcylinder(rx = 0., ry = 0.2, len = 0.25, angle = 0, col = col,
          mid = c(-1, 0), topcol = col[25])
filledcylinder(rx = 0., ry = 0.2, angle = 90, col = col,
          mid = c(-0.5, 0), topcol = col[25])
filledcylinder(rx = 0.1, ry = 0.2, angle = 90, col = c(col2, rev(col2)),
          mid = c(0.45, 0), topcol = col2[25])
filledcylinder(rx = 0.05, ry = 0.2, angle = 90, col = c(col3, rev(col3)),
          mid = c(0.9, 0), topcol = col3[25])
filledcylinder(rx = 0.1, ry = 0.2, angle = 90, col = "white",
          lcol = "black", lcolint = "grey")

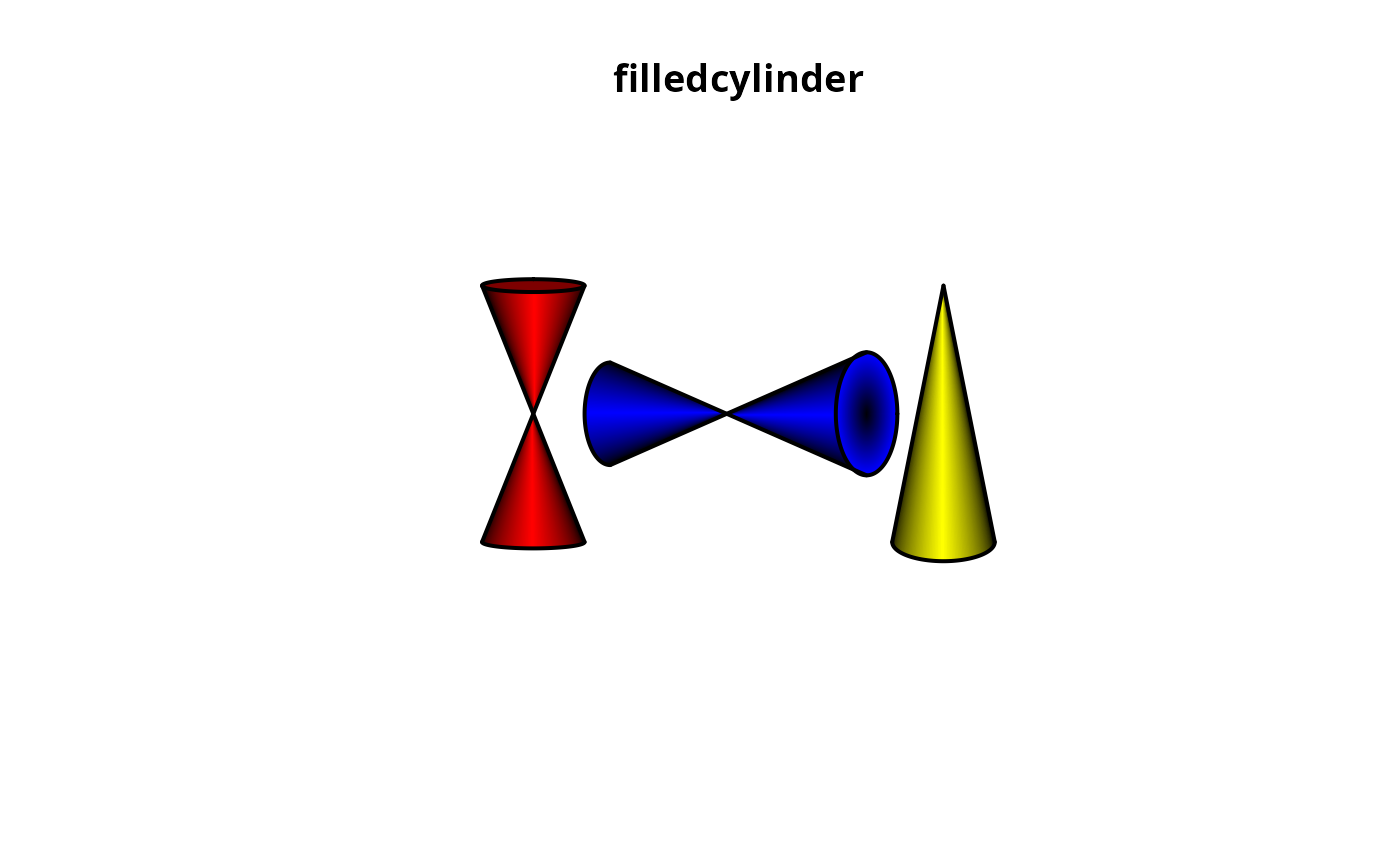

emptyplot(c(-1, 1), c(-1, 1), main = "filledcylinder")
col  <- shadepalette("blue", "black", n = 50)
col2 <- shadepalette("red", "black", n = 50)
col3 <- shadepalette("yellow", "black", n = 50)
filledcylinder(rx = 0.025, ry = 0.2, angle = 90, col = c(col2, rev(col2)),
          mid = c(-0.8, 0), topcol = col2[25], delt = -1, lcol = "black")
filledcylinder(rx = 0.1, ry = 0.2, angle = 00, col = c(col, rev(col)),
          mid = c(0.0, 0.0), topcol = col, delt = -1.2, lcol = "black")
filledcylinder(rx = 0.075, ry = 0.2, angle = 90, col = c(col3, rev(col3)),
          mid = c(0.8, 0), topcol = col3[25], delt = 0.0, lcol = "black")
