VPC function for time-to-event (survival) data

This function can be used for either single time-to-event (TTE) or repeated time-to-event (RTTE) data.

Usage

vpc_tte(
  sim = NULL,
  obs = NULL,
  psn_folder = NULL,
  rtte = FALSE,
  rtte_calc_diff = TRUE,
  rtte_conditional = TRUE,
  events = NULL,
  bins = FALSE,
  n_bins = 10,
  software = "auto",
  obs_cols = NULL,
  sim_cols = NULL,
  kmmc = NULL,
  reverse_prob = FALSE,
  stratify = NULL,
  stratify_color = NULL,
  ci = c(0.05, 0.95),
  xlab = "Time",
  ylab = "Survival (%)",
  show = NULL,
  as_percentage = TRUE,
  title = NULL,
  smooth = FALSE,
  vpc_theme = NULL,
  facet = "wrap",
  labeller = NULL,
  verbose = FALSE,
  vpcdb = FALSE
)

Arguments

sim: this is usually a data.frame with observed data, containing the independent and dependent variable, a column indicating the individual, and possibly covariates. E.g. load in from NONMEM using read_table_nm. However it can also be an object like a nlmixr or xpose object
obs: a data.frame with observed data, containing the independent and dependent variable, a column indicating the individual, and possibly covariates. E.g. load in from NONMEM using read_table_nm
psn_folder: instead of specifying "sim" and "obs", specify a PsN-generated VPC-folder
rtte: repeated time-to-event data? Default is FALSE (treat as single-event TTE)
rtte_calc_diff: recalculate time (T/F)? When simulating in NONMEM, you will probably need to set this to TRUE to recalculate the TIME to relative times between events (unless you output the time difference between events and specify that as independent variable to the vpc_tte() function.
rtte_conditional: `TRUE` (default) or `FALSE`. Compute the probability for each event newly (`TRUE`), or calculate the absolute probability (`FALSE`, i.e. the "probability of a 1st, 2nd, 3rd event etc" rather than the "probability of an event happening").
events: numeric vector describing which events to show a VPC for when repeated TTE data, e.g. c(1:4). Default is NULL, which shows all events.
bins: either "density", "time", or "data", "none", or one of the approaches available in classInterval() such as "jenks" (default) or "pretty", or a numeric vector specifying the bin separators.
n_bins: when using the "auto" binning method, what number of bins to aim for
software: name of software platform using (e.g. nonmem, phoenix)
obs_cols: list for mapping observation data columns, e.g. `list(dv = "DV", id = "ID", idv = "TIME", pred="PRED")`
sim_cols: list for mapping simulation data columns, e.g. `list(dv = "DV", id = "ID", idv = "TIME", pred="PRED")`
kmmc: either NULL (for regular TTE vpc, default), or a variable name for a KMMC plot (e.g. "WT")
reverse_prob: reverse the probability scale (i.e. plot 1-probability)
stratify: character vector of stratification variables. Only 1 or 2 stratification variables can be supplied.
stratify_color: character vector of stratification variables. Only 1 stratification variable can be supplied, cannot be used in conjunction with `stratify`.
ci: confidence interval to plot. Default is (0.05, 0.95)
xlab: label for x axis
ylab: label for y axis
show: what to show in VPC (obs_dv, obs_ci, pi, pi_as_area, pi_ci, obs_median, sim_median, sim_median_ci)
as_percentage: Show y-scale from 0-100 percent? TRUE by default, if FALSE then scale from 0-1.
title: title
smooth: "smooth" the VPC (connect bin midpoints) or show bins as rectangular boxes. Default is TRUE.
vpc_theme: theme to be used in VPC. Expects list of class vpc_theme created with function vpc_theme()
facet: either "wrap", "columns", or "rows"
labeller: ggplot2 labeller function to be passed to underlying ggplot object
verbose: show debugging information (TRUE or FALSE)
vpcdb: Boolean whether to return the underlying vpcdb rather than the plot

Value

a list containing calculated VPC information (when vpcdb=TRUE), or a ggplot2 object (default)

Details

Creates a VPC plot from observed and simulation survival data

Examples

## See vpc-docs.ronkeizer.com for more documentation and examples.

## Example for repeated) time-to-event data
## with NONMEM-like data (e.g. simulated using a dense grid)

data(rtte_obs_nm)
data(rtte_sim_nm)

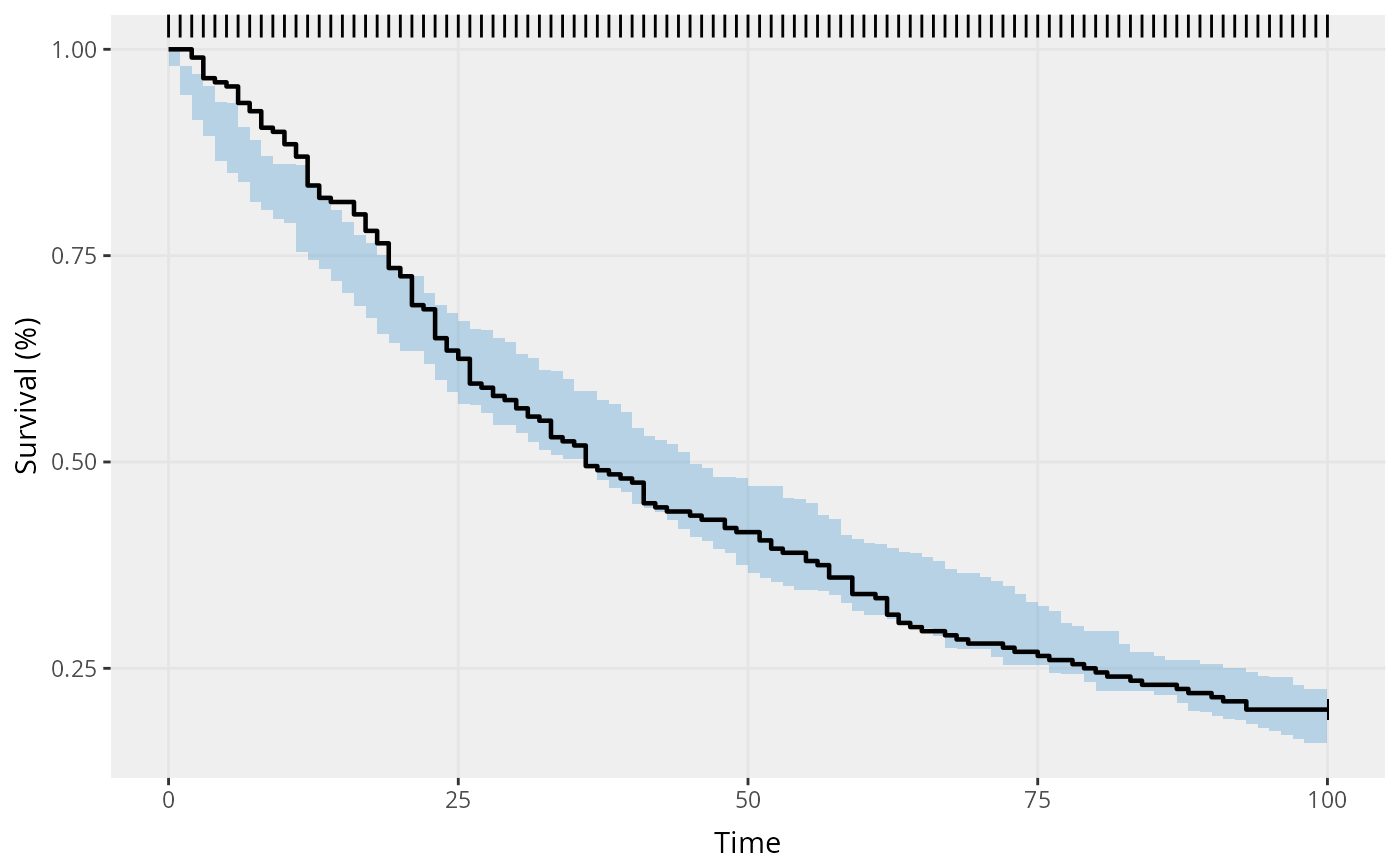

# treat RTTE as TTE, no stratification
vpc_tte(sim = rtte_sim_nm[rtte_sim_nm$sim <= 20,],
       obs = rtte_obs_nm,
       rtte = FALSE,
       sim_cols=list(dv = "dv", idv = "t"), obs_cols=list(idv = "t"))
#> Warning: No software packages matched for filtering values, not filtering.
#>  Object class: other, data.frame
#>  Available filters: phoenix, nonmem
#> Warning: No software packages matched for filtering values, not filtering.
#>  Object class: other, data.frame
#>  Available filters: phoenix, nonmem
