Lattice Theme

Source: R/themes.R
themes.Rd

A theme for use with lattice graphics.

Usage

theme.mosaic(bw = FALSE, lty = if (bw) 1:7 else 1, lwd = 2, ...)

col.mosaic(bw = FALSE, lty = if (bw) 1:7 else 1, lwd = 2, ...)

Arguments

bw

whether color scheme should be "black and white"

lty

vector of line type codes

lwd

vector of line widths

...

additional named arguments passed to lattice::trellis.par.set()

Value

Returns a list that can be supplied as the theme to lattice::trellis.par.set().

Note

These two functions are identical. col.mosaic is named similarly to lattice::col.whitebg(), but since more than just colors are set, theme.mosaic is a preferable name.

See also

lattice::trellis.par.set(), lattice::show.settings()

Examples

trellis.par.set(theme=theme.mosaic())
show.settings()

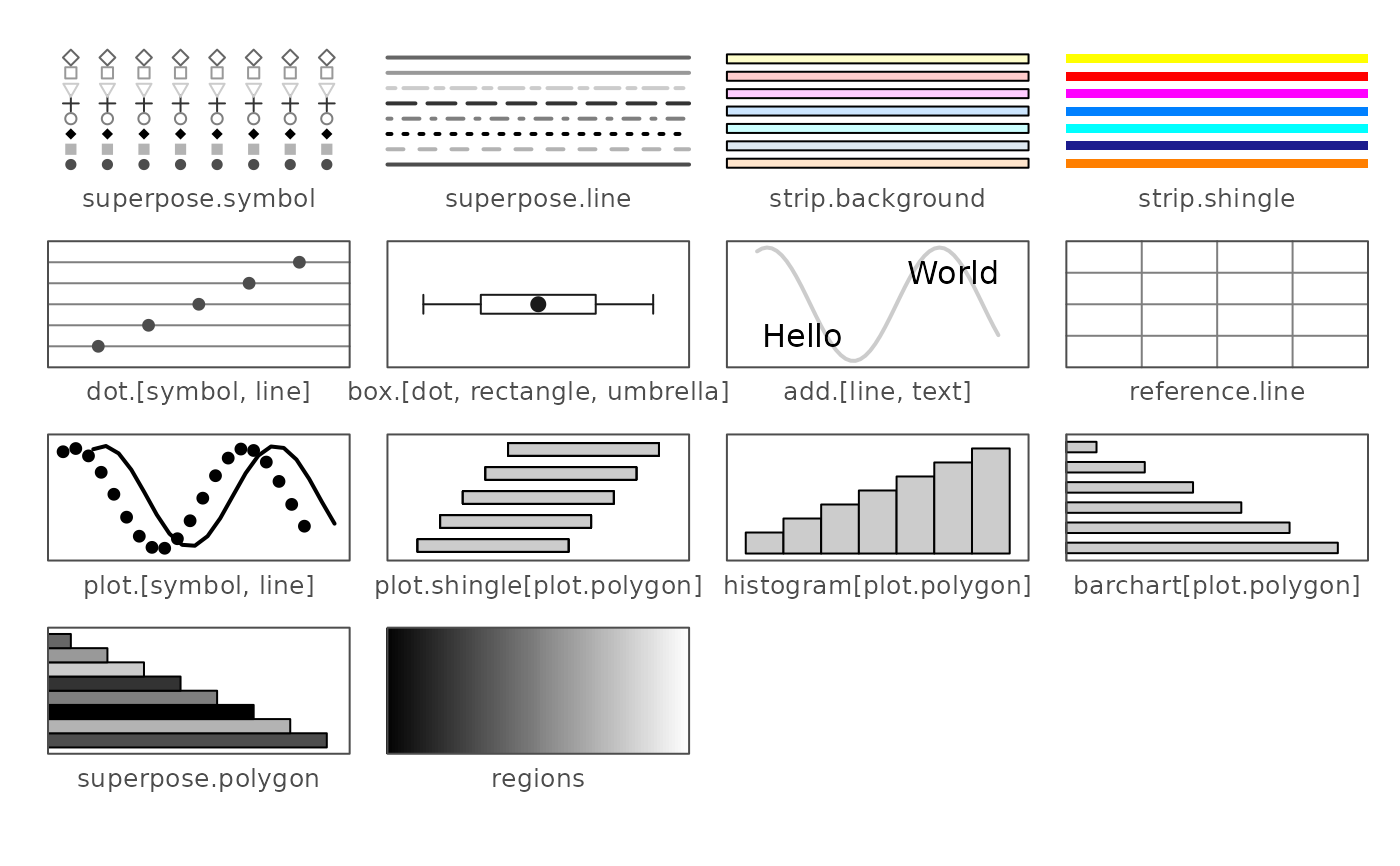

trellis.par.set(theme=theme.mosaic(bw=TRUE))
show.settings()
