Introduction

The current version of lme4 offers four covariance classes/structures: Covariance.us (unstructured), Covariance.diag (diagonal), Covariance.cs (compound symmetry), and Covariance.ar1 (autoregressive order 1). The syntax for use is somewhat similar to the glmmTMB package (see covariance structures in glmmTMB), although the results are slightly different.

The first half of this vignette provide a more detailed explanation of how the new machinery works, and the second half of the vignette will compare lme4 and glmmTMB implementations and results.

Background

For exact details of this structure, refer to the lmer vignette (Bates et al. 2015). We provide a quick summary in this vignette.

In matrix notation, a linear mixed model can be represented as: 𝐲=𝐗𝛃+𝐙𝐛+𝛜 \mathbf{y} = \mathbf{X} \boldsymbol \beta + \mathbf Z \mathbf{b} + \boldsymbol{\epsilon} Where 𝐛\mathbf{b} represents an unknown vector of random effects. The class helps define the structure of the variance-covariance matrix as specified as Var(𝐛)\textrm{Var}(\mathbf{b}). Typically, we denote the variance-covariance matrix as 𝚺\mathbf \Sigma.

First, we create the relative co-factor 𝚲𝛉\mathbf \Lambda_{\mathbf \theta} which is a q×qq \times q block diagonal matrix that depends on the variance-component parameter θ\theta. Let σ\sigma be the scale parameter of the variance of a linear mixed model. In lme4, the variance-covariance matrix is constructed by: 𝚺𝛉=σ2𝚲𝛉𝚲𝛉⊤, {\mathbf \Sigma}_{\mathbf{\theta}} = \sigma^2 {\mathbf \Lambda}_{\mathbf \theta} {\mathbf \Lambda}_{\mathbf \theta}^{\top},

For generalized linear mixed models, 𝚲\mathbf \Lambda instead represents the unscaled Cholesky factor; that is, the scaling term σ2\sigma^2 is omitted from the equation above.

The major difference between the four covariance classes (Covariance.us (unstructured), Covariance.diag (diagonal), Covariance.cs (compound symmetry), and Covariance.ar1 (autoregressive order 1)) is the construction of the the relative Cholesky factor 𝚲𝛉\mathbf \Lambda_{\mathbf \theta}.

Covariance Structures

Suppose there are pp number of random effect terms for a particular grouping variable. The unstructured covariance, which is the default in lme4, of size p×pp \times p has the following form: 𝚺=[σ12σ12…σ1pσ21σ22…σ2p⋮⋮⋱⋮σp1σp2…σp2] \mathbf{\Sigma} = \begin{bmatrix} \sigma^{2}_{1} & \sigma_{12} & \dots & \sigma_{1p} \\ \sigma_{21} & \sigma^{2}_{2} & \dots & \sigma_{2p} \\ \vdots & \vdots & \ddots & \vdots \\ \sigma_{p1} & \sigma_{p2} & \dots & \sigma^{2}_{p} \\ \end{bmatrix}

The next three covariance structures can either be heterogeneous or homogeneous. If we have a homogeneous covariance structure (hom = TRUE), then we assume σ1=σ2=…=σp\sigma_{1} = \sigma_{2} = \dots = \sigma_{p}.

The diagonal covariance has the following form: 𝚺=[σ120…00σ22…0⋮⋮⋱⋮00…σp2] \mathbf{\Sigma} = \begin{bmatrix} \sigma^{2}_{1} & 0 & \dots & 0 \\ 0 & \sigma^{2}_{2} & \dots & 0 \\ \vdots & \vdots & \ddots & \vdots \\ 0 & 0 & \dots & \sigma^{2}_{p} \\ \end{bmatrix} By default, we assume a heterogeneous diagonal covariance structure.

The compound symmetric covariance has the following form: 𝚺=[σ12σ1σ2ρσ1σ3ρ…σ1σpρσ2σ1ρσ22σ2σ3ρ…σ2σpρσ3σ1ρσ3σ2ρσ32…σ3σpρ⋮⋮⋮⋱⋮σpσ1ρσpσ2ρσpσ3ρ…σp2] \mathbf{\Sigma} = \begin{bmatrix} \sigma^{2}_{1} & \sigma_{1}\sigma_{2}\rho & \sigma_{1}\sigma_{3}\rho & \dots & \sigma_{1}\sigma_{p}\rho \\ \sigma_{2}\sigma_{1} \rho & \sigma^{2}_{2} & \sigma_{2}\sigma_{3}\rho & \dots & \sigma_{2}\sigma_{p}\rho \\ \sigma_{3}\sigma_{1} \rho & \sigma_{3}\sigma_{2}\rho & \sigma^{2}_{3} & \dots & \sigma_{3}\sigma_{p}\rho \\ \vdots & \vdots & \vdots & \ddots & \vdots \\ \sigma_{p}\sigma_{1} \rho & \sigma_{p}\sigma_{2}\rho & \sigma_{p}\sigma_{3}\rho & \dots & \sigma^{2}_{p} \end{bmatrix} By default, we assume a heterogeneous compound symmetric covariance structure.

The AR1 (auto-regressive order 1) covariance has the following form: 𝚺=[σ12σ1σ2ρσ1σ3ρ2…σ1σpρp−1σ2σ1ρσ22σ2σ3ρ…σ2σpρp−2σ3σ1ρ2σ3σ2ρσ32…σ3σpρp−3⋮⋮⋮⋱⋮σpσ1ρp−1σpσ2ρp−2σpσ3ρp−3…σp2] \mathbf{\Sigma} = \begin{bmatrix} \sigma^{2}_{1} & \sigma_{1}\sigma_{2} \rho & \sigma_{1}\sigma_{3}\rho^{2} & \dots & \sigma_{1}\sigma_{p}\rho^{p-1} \\ \sigma_{2}\sigma_{1} \rho & \sigma^{2}_{2} & \sigma_{2}\sigma_{3}\rho & \dots & \sigma_{2}\sigma_{p}\rho^{p-2} \\ \sigma_{3}\sigma_{1} \rho^{2} & \sigma_{3}\sigma_{2}\rho & \sigma^{2}_{3} & \dots & \sigma_{3}\sigma_{p}\rho^{p-3} \\ \vdots & \vdots & \vdots & \ddots & \vdots \\ \sigma_{p}\sigma_{1} \rho^{p-1} & \sigma_{p}\sigma_{2}\rho^{p-2} & \sigma_{p}\sigma_{3}\rho^{p-3} & \dots & \sigma^{2}_{p} \end{bmatrix} Unlike the diagonal and compound symmetric structures, by default we assume a homogeneous ar1 covariance structure.

Construction of the Relative Co-factor

For the unstructured covariance matrix, lme4 estimates the following parameters in par: 𝛉=(θ1,θ2,…,θp(p+1)/2)\mathbf{\theta} = (\theta_{1}, \theta_{2}, \dots, \theta_{p(p+1)/2}) to construct the relative co-factor 𝚲𝛉{\mathbf \Lambda}_{\mathbf{\theta}} (this is the same as in previous versions): Λ𝛉=[θ100…0θ2θ30…0θ4θ5θ6…0⋮⋮⋮⋱⋮θ...θ...θ...…θp(p+1)/2] \Lambda_{\mathbf{\theta}} = \begin{bmatrix} \theta_1 & 0 & 0 & \dots & 0 \\ \theta_2 & \theta_3 & 0 & \dots & 0 \\ \theta_4 & \theta_5 & \theta_6 & \dots & 0 \\ \vdots & \vdots & \vdots & \ddots & \vdots \\ \theta_{...} & \theta_{...} & \theta_{...} & \dots & \theta_{p(p+1)/2} \end{bmatrix}

The definition of the parameter vectors differs for the other covariance structures. In the diagonal covariance matrix case, 𝛉\mathbf{\theta} (or par) only contains the standard deviations. The relative co-factor 𝚲𝛉{\mathbf \Lambda}_{\mathbf{\theta}} is: 𝐋ambda𝛉=[θ100…00θ20…000θ3…0⋮⋮⋮⋱⋮000…θp] {\mathbf Lambda}_{\mathbf{\theta}} = \begin{bmatrix} \theta_1 & 0 & 0 & \dots & 0 \\ 0 & \theta_2 & 0 & \dots & 0 \\ 0 & 0 & \theta_3 & \dots & 0 \\ \vdots & \vdots & \vdots & \ddots & \vdots \\ 0 & 0 & 0 & \dots & \theta_{p} \end{bmatrix}

For the compound symmetry covariance structure, the parameter vector par contains the pp standard deviations (σ1,σ2,…,σp)(\sigma_1, \sigma_2, \ldots, \sigma_p) and the common correlation ρ\rho. In contrast to glmmTMB, the correlation is estimated on its original scale (bounded between -1 and 1), rather than on an unconstrained, transformed scale.

The relative co-factor 𝚲𝛉{\mathbf \Lambda}_{\mathbf{\theta}} is a lower triangular p×pp \times p matrix. Consider the form: 𝚲𝛉=[θ1100⋯0θ21θ220⋯0θ31θ32θ33⋯0⋮⋮⋮⋱⋮θp1θp2θp3⋯θpp] {\mathbf \Lambda}_{\mathbf{\theta}} = \begin{bmatrix} \theta_{11} & 0 & 0 & \cdots & 0 \\ \theta_{21} & \theta_{22} & 0 & \cdots & 0 \\ \theta_{31} & \theta_{32} & \theta_{33} & \cdots & 0 \\ \vdots & \vdots & \vdots & \ddots & \vdots \\ \theta_{p1} & \theta_{p2} & \theta_{p3} & \cdots & \theta_{pp} \end{bmatrix}

Its elements θij\theta_{ij} are constructed as follows. First, define the sequence {aj}\{a_j\} recursively: a1=0,aj+1=aj+(1−ρ⋅aj)21−ρ2⋅ajfor j=1,…,p−1 a_1 = 0, \quad a_{j+1} = a_j + \frac{(1 - \rho \cdot a_j)^2}{1 - \rho^2 \cdot a_j} \quad \text{for } j = 1, \ldots, p-1

Then the elements of 𝚲{\mathbf \Lambda} are given by: θij={1−ρ2ajif i=j (diagonal)ρ−ρ2aj1−ρ2ajif i>j (below diagonal)0if i<j (above diagonal) \theta_{ij} = \begin{cases} \sqrt{1 - \rho^2 a_j} & \text{if } i = j \text{ (diagonal)} \\[0.5em] \dfrac{\rho - \rho^2 a_j}{\sqrt{1 - \rho^2 a_j}} & \text{if } i > j \text{ (below diagonal)} \\[0.5em] 0 & \text{if } i < j \text{ (above diagonal)} \end{cases} In the code, one can extract the values θij\theta_{ij} via the getTheta() function of the Covariance.cs object, in which theta will be a vector in the column-wise elements of 𝚲{\mathbf \Lambda}.

The setup is similar for the autoregressive order 1 (AR1) covariance structure. Again, the parameter vector contains the pp standard deviations (σ1,σ2,…,σp)(\sigma_1, \sigma_2, \ldots, \sigma_p) and the autocorrelation parameter ρ\rho. The relative co-factor 𝚲𝛉{\mathbf \Lambda}_{\mathbf{\theta}} is a lower triangular p×pp \times p matrix whose form is similar to the compound symmetric case.

The elements θij\theta_{ij} are given by: θij={ρi−1if j=1 (first column)ρi−j1−ρ2if 1<j≤i (below diagonal)0if i<j (above diagonal) \theta_{ij} = \begin{cases} \rho^{i-1} & \text{if } j = 1 \text{ (first column)} \\[0.5em] \rho^{i-j} \sqrt{1 - \rho^2} & \text{if } 1 < j \leq i \text{ (below diagonal)} \\[0.5em] 0 & \text{if } i < j \text{ (above diagonal)} \end{cases} Again, these values can be extracted using getTheta() function of the Covariance.ar1 object, in which theta will be still be a vector in the column-wise elements of 𝚲{\mathbf \Lambda}.

Extracting model components

This section illustrates how to extract par, theta, Lambda, as described in the previous section, as well as the variance covariance matrices of a model, from a merMod object.

We’ll fit the standard sleepstudy example, except that we will use a model with a compound symmetric covariance structure. Because this model has only two varying effects (intercept and slope with respect to day) per subject, and hence the covariance matrix is 2×22 \times 2, there is no difference in overall model fit between the compound-symmetric and the unstructured covariance matrices. Howevever, the models are parameterized differently, so this example will highlight the differences between par and theta.

library(lme4)
#> Loading required package: Matrix
fm1.cs <- lmer(Reaction ~ Days + cs(1 + Days | Subject), sleepstudy)

Extracting the covariance structure:

print(fm1.cs_cov <- getReCovs(fm1.cs))
#> [[1]]
#> An object of class "Covariance.cs"
#> Slot "hom":
#> [1] FALSE
#>
#> Slot "nc":
#> [1] 2
#>
#> Slot "par":
#> [1] 0.96679232 0.23140420 0.06561148

The result is a list with only one element as we only have one random-effects term (cs(1 + Days | Subject)). To see the values of par and theta for this object, we can call:

getME(fm1.cs, "par")
#> Subject.(Intercept)        Subject.Days         Subject.rho
#>          0.96679232          0.23140420          0.06561148
getME(fm1.cs, "theta")
#>      Subject.(Intercept) Subject.Days.(Intercept)             Subject.Days
#>               0.96679232               0.01518277               0.23090558

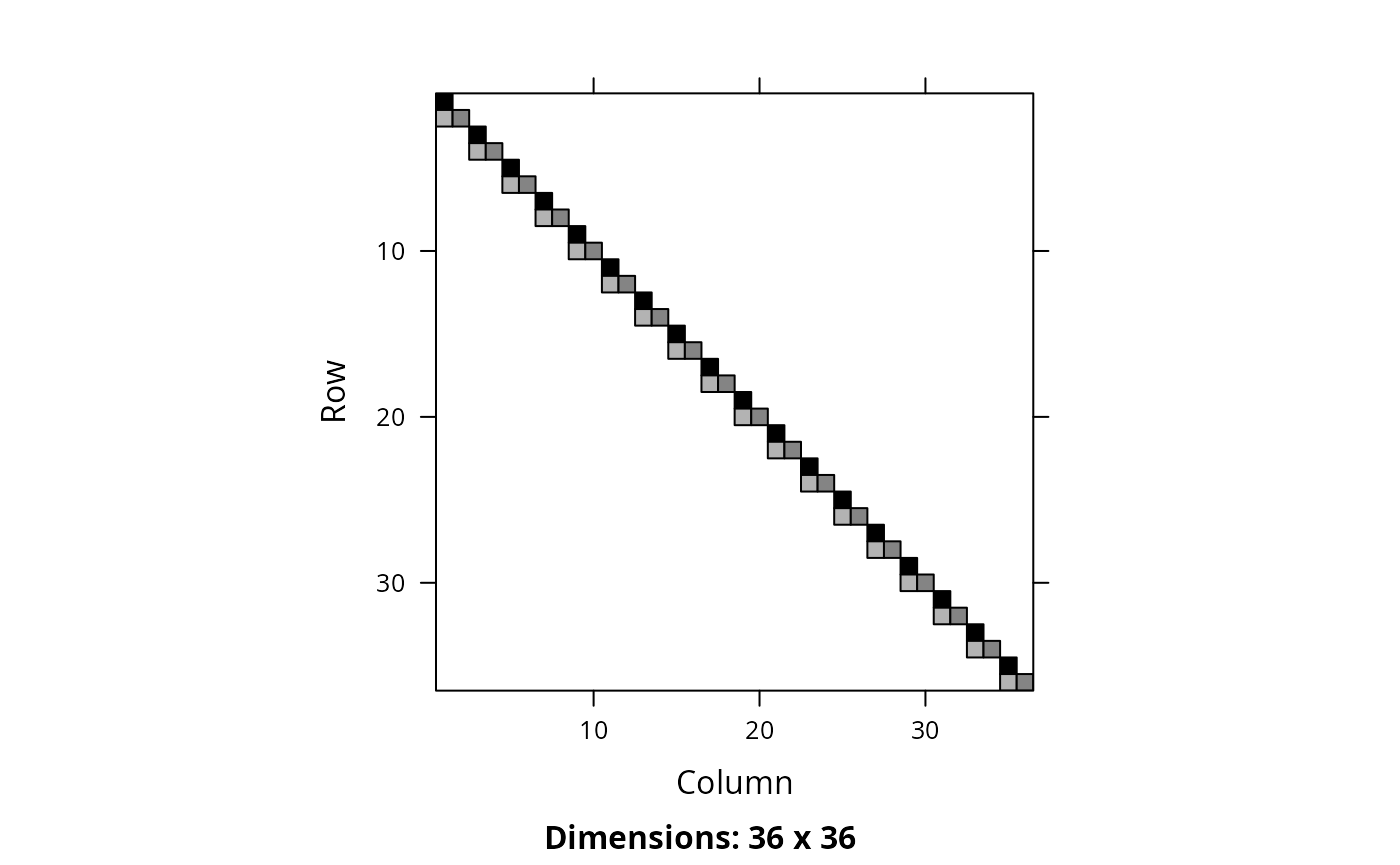

The 𝚲{\mathbf \Lambda} matrix is large, so we’ll view it instead of printing:

library(Matrix)
image(getME(fm1.cs, "Lambda"))

To most users, the most crucial information is simply the variance-covariance matrices. Extracte these via VarCorr.merMod() (the list has one element per random-effect term in the model — in this case, only one):

vc_mat <- VarCorr(fm1.cs)
vc_mat$Subject
#>             (Intercept)      Days
#> (Intercept)  612.160273  9.613533
#> Days           9.613533 35.070443
#> attr(,"class")
#> [1] "vcmat_cs" "matrix"   "array"
#> attr(,"stddev")
#> [1] 24.74187  5.92203
#> attr(,"correlation")
#>             (Intercept)       Days
#> (Intercept)  1.00000000 0.06561148
#> Days         0.06561148 1.00000000
#> attr(,"theta")
#> [1] 0.96679232 0.01518277 0.23090558
#> attr(,"profpar")
#> [1] 0.96679232 0.23140420 0.06561148
#> attr(,"rho")
#> [1] 0.06561148

Comparisons with glmmTMB

Reason for Computational Differences

When fitting linear mixed models, lme4 parameterizes the random-effects variance–covariance matrix on an unconstrained scale, using box-constrained optimization algorithms to ensure that the variance-covariance matrix is positive semidefinite. For unstructured covariance matrices, this means that the elements of 𝛉\mathbf \theta that parameterize the diagonal elements of 𝚲\mathbf \Lambda are constrained to be ≥0\ge 0 (for diagonal models, all of the elements of 𝛉\mathbf \theta fill the diagonal of 𝚲\mathbf \Lambda and hence are ≥0\ge 0; for models such as the compound-symmetric or AR1 models that use correlation parameters, we constrain |ρ|≤1|\rho| \le 1. As discussed in Bates et al. (2015), this constrained parameterization works well for handling model where the estimated covariance matrix is singular (i.e. 𝚺\mathbf \Sigma is only positive semidefinite, not positive definite). In addition, for linear mixed models lme4 profiles the fixed-effect parameters out of the objective function (Bates et al. 2015); finally, the scale parameter σ\sigma is not estimated directly, but is derived from the residual variance or deviance of the fitted model.

In contrast, glmmTMB uses direct maximum likelihood estimation via Template Model Builder (TMB), fitting to the full parameter vector {𝛉,𝛃,σ2}\{\mathbf \theta, \mathbf \beta, \sigma^2\}. Covariance parameters are fitted on a transformed (unconstrained) scale: log scale for standard deviations and various scales for correlation parameters (see the glmmTMB covariance structures vignette for details). This parameterization simplifies fitting (a box-constrained algorithm isn’t necessary), but is less convenient in singular fits and other cases where the maximum likelihood estimate is infinite on the unconstrained scale.

Despite these differences, we will show examples where lme4 and glmmTMB provide similar estimates when they both use maximum likelihood estimation. By default, lme4 uses the restricted maximum likelihood; hence in the following examples, we use lmer(..., REML = FALSE) to compare against glmmTMB.

Comparison Setup

if (!requireNamespace("glmmTMB", quietly = TRUE)) {
  knitr::opts_chunk$set(eval = FALSE)
} else {
  library(glmmTMB)
}

## Often want to ignore attributes and class.
## Set a fairly large tolerance for convenience.
all.equal.nocheck <- function(x, y, tolerance = 3e-5, ..., check.attributes = FALSE, check.class = FALSE) {
  require("Matrix", quietly = TRUE)
  ## working around mode-matching headaches
  if (is(x, "Matrix")) x <- matrix(x)
  if (is(y, "Matrix")) y <- matrix(y)
  all.equal(x, y, ..., tolerance = tolerance, check.attributes = check.attributes, check.class = check.class)
}

get.cor1 <- function(x) {
  v <- VarCorr(x)
  vv <- if (inherits(x, "merMod")) v$group else v$cond$group
  attr(vv, "correlation")[1,2]
}

Unstructured (General Positive Definite)

This is the default setting for both lme4 and glmmTMB. Below we simulate a dataset with known beta, theta and sigma values.

n_groups <- 20
n_per_group <- 20
n <- n_groups * n_per_group

set.seed(1)
dat.us <- data.frame(
  group = rep(1:n_groups, each = n_per_group),
  x1 = rnorm(n),
  x2 = rnorm(n)
)
## Constructing a similar dataset for the other examples
gdat.us <- dat.diag <- gdat.diag <- dat.us

form <- y ~ 1 + x1 * x2 + us(1 + x1|group)
dat.us$y <- simulate(form[-2],
                    newdata = dat.us,
                    family = gaussian,
                    newparams = list(beta = c(-7, 5, -100, 20),
                                     theta = c(2.5, 1.4, 6.3),
                                     sigma = 2))[[1]]

form2 <- y ~ 1 + x1 + us(1 + x1|group)
gdat.us$y <- simulate(
  form2[-2],
  newdata = gdat.us,
  family = binomial,
  newparams = list(
    beta  = c(-1.5, 0.5),
    theta = c(0.3, 0.1, 0.3)
  ))[[1]]

Linear Mixed Model

lme4.us <- lmer(form, data = dat.us, REML = "FALSE")
glmmTMB.us <- glmmTMB(form, dat = dat.us)

## Fixed effects
fixef(lme4.us); fixef(glmmTMB.us)$cond
#> (Intercept)          x1          x2       x1:x2
#>   -7.280739    5.795443 -100.070859   19.958369
#> (Intercept)          x1          x2       x1:x2
#>   -7.280736    5.795388 -100.070860   19.958369
all.equal.nocheck(fixef(lme4.us), fixef(glmmTMB.us)$cond)
#> [1] TRUE

## Sigma
sigma(lme4.us); sigma(glmmTMB.us)
#> [1] 2.049702
#> [1] 2.049702
all.equal.nocheck(sigma(lme4.us), sigma(glmmTMB.us))
#> [1] TRUE

## Log likelihoods
logLik(lme4.us); logLik(glmmTMB.us)
#> 'log Lik.' -971.3046 (df=8)
#> 'log Lik.' -971.3046 (df=8)
all.equal.nocheck(logLik(lme4.us), logLik(glmmTMB.us))
#> [1] TRUE

As expected, calculations related to the random-effects term differ slightly beyond this point.

## Variance-Covariance Matrix
vcov(lme4.us); vcov(glmmTMB.us)$cond
#> 4 x 4 Matrix of class "dpoMatrix"
#>               (Intercept)            x1            x2         x1:x2
#> (Intercept)  1.2015013379 -0.1733524625  0.0008614781 -0.0004201163
#> x1          -0.1733524625 12.4136628944 -0.0008710084  0.0026046011
#> x2           0.0008614781 -0.0008710084  0.0101254478 -0.0018079150
#> x1:x2       -0.0004201163  0.0026046011 -0.0018079150  0.0117364494
#>               (Intercept)            x1            x2         x1:x2
#> (Intercept)  1.2014959308 -0.1733102259  0.0008614825 -0.0004201922
#> x1          -0.1733102259 12.4138803799 -0.0008713988  0.0026042335
#> x2           0.0008614825 -0.0008713988  0.0101257004 -0.0018074214
#> x1:x2       -0.0004201922  0.0026042335 -0.0018074214  0.0117377999
all.equal.nocheck(vcov(lme4.us), vcov(glmmTMB.us)$cond)
#> [1] TRUE

## Variance and Covariance Components
all.equal.nocheck(VarCorr(lme4.us)$group,
          VarCorr(glmmTMB.us)$cond$group)
#> [1] TRUE

## Conditional Modes of the Random Effects
all.equal.nocheck(ranef(lme4.us)$group, ranef(glmmTMB.us)$cond$group)
#> [1] TRUE

Generalized Linear Mixed Model

glme4.us <- glmer(form2, data = gdat.us, family = binomial)
gglmmTMB.us <- glmmTMB(form2, dat = gdat.us, family = binomial)

## Fixed effects
fixef(glme4.us); fixef(gglmmTMB.us)$cond
#> (Intercept)          x1
#>  -1.5400786   0.4547925
#> (Intercept)          x1
#>  -1.5403288   0.4545996
all.equal.nocheck(fixef(glme4.us), fixef(gglmmTMB.us)$cond)
#> [1] "Mean relative difference: 0.0002221048"

## Sigma
all.equal.nocheck(sigma(glme4.us), sigma(gglmmTMB.us))
#> [1] TRUE

## Log likelihoods
logLik(glme4.us); logLik(gglmmTMB.us)
#> 'log Lik.' -191.8811 (df=5)
#> 'log Lik.' -191.8809 (df=5)
all.equal.nocheck(logLik(glme4.us), logLik(gglmmTMB.us))
#> [1] TRUE

As expected, calculations related to the random-effects term differ slightly beyond this point.

## Variance-Covariance Matrix
vcov(glme4.us); vcov(gglmmTMB.us)$cond
#> 2 x 2 Matrix of class "dpoMatrix"
#>              (Intercept)           x1
#> (Intercept)  0.028221233 -0.001848413
#> x1          -0.001848413  0.038084198
#>              (Intercept)           x1
#> (Intercept)  0.028453808 -0.001749237
#> x1          -0.001749237  0.038270693
all.equal.nocheck(vcov(glme4.us), vcov(gglmmTMB.us)$cond)
#> [1] "Mean relative difference: 0.008820021"

## Variance and Covariance Components
all.equal.nocheck(VarCorr(glme4.us)$group,
          VarCorr(gglmmTMB.us)$cond$group)
#> [1] "Mean relative difference: 0.001268453"

## Conditional Modes of the Random Effects
all.equal.nocheck(ranef(glme4.us)$group, ranef(gglmmTMB.us)$cond$group)
#> [1] "Component \"(Intercept)\": Mean relative difference: 0.0009258143"
#> [2] "Component \"x1\": Mean relative difference: 0.0007570482"

Diagonal

The syntax is the same for fitting a heterogeneous diagonal covariance structure for lme4 and glmmTMB. It changes when we want to fit a homogeneous diagonal covariance structure.

To fit a homogeneous diagonal covariance structure we would write:

lme4.us <- lmer(Reaction ~ Days + diag(Days | Subject, hom = TRUE), sleepstudy)
glmmTMB.us <- glmmTMB(Reaction ~ Days + homdiag(Days | Subject), sleepstudy)

We will focus on comparisons of an estimated heterogeneous diagonal covariance structure.

form <- y ~ 1 + x1 * x2 + diag(1|group)
dat.diag$y <- simulate(form[-2],
                       newdata = dat.diag,
                       family = gaussian,
                       newparams = list(beta = c(-7, 5, -100, 20),
                                        theta = c(2.5),
                                        sigma = 2))[[1]]
lme4.diag <- lmer(form, data = dat.diag, REML = "FALSE")
glmmTMB.diag <- glmmTMB(form, dat = dat.diag)

## Fixed effects
fixef(lme4.diag); fixef(glmmTMB.diag)$cond
#> (Intercept)          x1          x2       x1:x2
#>   -6.484337    5.111952 -100.045319   20.037624
#> (Intercept)          x1          x2       x1:x2
#>   -6.484329    5.111952 -100.045319   20.037624
all.equal.nocheck(fixef(lme4.diag), fixef(glmmTMB.diag)$cond)
#> [1] TRUE

## Sigma
sigma(lme4.diag); sigma(glmmTMB.diag)
#> [1] 2.156913
#> [1] 2.156913
all.equal.nocheck(sigma(lme4.diag), sigma(glmmTMB.diag))
#> [1] TRUE

## Log likelihoods
logLik(lme4.diag); logLik(glmmTMB.diag)
#> 'log Lik.' -915.8749 (df=6)
#> 'log Lik.' -915.8749 (df=6)
all.equal.nocheck(logLik(lme4.diag), logLik(glmmTMB.diag))
#> [1] TRUE

## Variance-Covariance Matrix
vcov(lme4.diag); vcov(glmmTMB.diag)$cond
#> 4 x 4 Matrix of class "dpoMatrix"
#>               (Intercept)            x1            x2         x1:x2
#> (Intercept)  0.6899487466 -0.0006448103  0.0008535087 -0.0005702566
#> x1          -0.0006448103  0.0135575383 -0.0008171565  0.0025591747
#> x2           0.0008535087 -0.0008171565  0.0107715407 -0.0021874630
#> x1:x2       -0.0005702566  0.0025591747 -0.0021874630  0.0115262417
#>               (Intercept)            x1            x2         x1:x2
#> (Intercept)  0.6899487512 -0.0006448095  0.0008535098 -0.0005702545
#> x1          -0.0006448095  0.0135576594 -0.0008169500  0.0025595384
#> x2           0.0008535098 -0.0008169500  0.0107718878 -0.0021868490
#> x1:x2       -0.0005702545  0.0025595384 -0.0021868490  0.0115273226
all.equal.nocheck(vcov(lme4.diag), vcov(glmmTMB.diag)$cond)
#> [1] TRUE

## Variance and Covariance Components
all.equal.nocheck(VarCorr(lme4.diag)[[1]],
          VarCorr(glmmTMB.diag)$cond$group)
#> [1] TRUE

## Conditional Modes of the Random Effects
all.equal.nocheck(ranef(lme4.diag)$group, ranef(glmmTMB.diag)$cond$group)
#> [1] TRUE

Compound Symmetry

Similar to the diagonal case, the syntax is the same for fitting a heterogeneous compound symmetry covariance structure for lme4 and glmmTMB:

lme4.us <- lmer(Reaction ~ Days + cs(Days | Subject, hom = TRUE), sleepstudy)
glmmTMB.us <- glmmTMB(Reaction ~ Days + cs(Days | Subject), sleepstudy)

Again, it differs when we want to fit a homogeneous compound symmetry covariance structure, which we will use for our comparisons.

simGroup <- function(g, n=6, phi=0.6) {
  x <- MASS::mvrnorm(mu = rep(0,n),
                     Sigma = phi^as.matrix(dist(1:n)) )
  y <- x + rnorm(n)
  times <- factor(1:n)
  group <- factor(rep(g,n))
  data.frame(y, times, group)
}

set.seed(1)
dat.cs <- do.call("rbind", lapply(1:2000, simGroup))
lme4.cs <- lmer(y ~ times + cs(0 + times | group, hom = TRUE), data = dat.cs, REML = FALSE)
glmmTMB.cs <- glmmTMB(y ~ times + homcs(0 + times | group), data = dat.cs)
#> Warning in finalizeTMB(TMBStruc, obj, fit, h, data.tmb.old): Model convergence
#> problem; non-positive-definite Hessian matrix. See vignette('troubleshooting')

## Fixed effects
fixef(lme4.cs); fixef(glmmTMB.cs)$cond
#>  (Intercept)       times2       times3       times4       times5       times6
#> -0.003601028  0.024047964  0.004877225  0.052026751  0.049632430  0.058705282
#>  (Intercept)       times2       times3       times4       times5       times6
#> -0.003614815  0.024054555  0.004889497  0.052034066  0.049639781  0.058721255
all.equal.nocheck(fixef(lme4.cs), fixef(glmmTMB.cs)$cond)
#> [1] "Mean relative difference: 0.0003281084"

## Sigma
sigma(lme4.cs); sigma(glmmTMB.cs)
#> [1] 1.006676
#> [1] 1.041604
all.equal.nocheck(sigma(lme4.cs), sigma(glmmTMB.cs))
#> [1] "Mean relative difference: 0.03469571"

## Log likelihoods
logLik(lme4.cs); logLik(glmmTMB.cs)
#> 'log Lik.' -20850.22 (df=18)
#> 'log Lik.' NA (df=9)
all.equal.nocheck(logLik(lme4.cs), logLik(glmmTMB.cs))
#> [1] "'is.NA' value mismatch: 1 in current 0 in target"

## Variance-Covariance Matrix
all.equal.nocheck(vcov(lme4.cs), vcov(glmmTMB.cs)$cond)
#> [1] TRUE

## Variance and Covariance Components
all.equal.nocheck(VarCorr(lme4.cs)[[1]],
          VarCorr(glmmTMB.cs)$cond$group)
#> [1] "Mean relative difference: 0.02558092"

## Conditional Modes of the Random Effects
all.equal.nocheck(ranef(lme4.cs)$group, ranef(glmmTMB.cs)$cond$group)
#> Warning in sqrt(as.numeric(object$diag.cov.random)): NaNs produced
#> [1] "Component \"times1\": Mean relative difference: 0.07526032"
#> [2] "Component \"times2\": Mean relative difference: 0.07067102"
#> [3] "Component \"times3\": Mean relative difference: 0.06907266"
#> [4] "Component \"times4\": Mean relative difference: 0.06931966"
#> [5] "Component \"times5\": Mean relative difference: 0.07089414"
#> [6] "Component \"times6\": Mean relative difference: 0.0742481"

## Comparing against the predicted rho value
lme4.rho <- get.cor1(lme4.cs)
glmmTMB.rho <- get.cor1(glmmTMB.cs)
lme4.rho; glmmTMB.rho
#> [1] 0.3642212
#> [1] 0.3925468
all.equal.nocheck(lme4.rho, glmmTMB.rho)
#> [1] "Mean relative difference: 0.07777033"

Autoregressive Order 1

For this comparison, we focus on a simulated data set with ρ=0.7\rho = 0.7.

set.seed(1)
dat.ar1 <- do.call("rbind", lapply(1:2000, function(g) simGroup(g, phi = 0.7)))

Unlike the diagonal and compound symmetry case, the syntax differs for fitting either a heterogeneous or a homogeneous AR1 model for lme4 and glmmTMB.

For a heterogeneous AR1 covariance structure we would write the following:

lme4.ar1 <- lmer(y ~ times + ar1(0 + times | group), data = dat.ar1, REML = FALSE)
glmmTMB.ar1 <- glmmTMB(y ~ times + hetar1(0 + times | group), data = dat.ar1)

We will instead focus on comparisons for a homogeneous AR1 covariance structure.

lme4.ar1 <- lmer(y ~ times + ar1(0 + times | group, hom = TRUE), data = dat.ar1, REML = FALSE)
glmmTMB.ar1 <- glmmTMB(y ~ times + ar1(0 + times | group), data = dat.ar1)

## Fixed effects
fixef(lme4.ar1); fixef(glmmTMB.ar1)$cond
#> (Intercept)      times2      times3      times4      times5      times6
#> -0.01013620  0.02737776  0.02097931  0.07361698  0.05848662  0.05164259
#> (Intercept)      times2      times3      times4      times5      times6
#> -0.01015168  0.02740053  0.02099352  0.07362919  0.05850250  0.05165057
all.equal.nocheck(fixef(lme4.ar1), fixef(glmmTMB.ar1)$cond)
#> [1] "Mean relative difference: 0.0003654732"

## Sigma
sigma(lme4.ar1); sigma(glmmTMB.ar1)
#> [1] 0.9870569
#> [1] 0.9870552
all.equal.nocheck(sigma(lme4.ar1), sigma(glmmTMB.ar1))
#> [1] TRUE

## Log likelihoods
logLik(lme4.ar1); logLik(glmmTMB.ar1)
#> 'log Lik.' -20483.65 (df=18)
#> 'log Lik.' -20483.65 (df=9)
all.equal.nocheck(logLik(lme4.ar1), logLik(glmmTMB.ar1))
#> [1] TRUE

## Variance-Covariance Matrix
all.equal.nocheck(vcov(lme4.ar1), vcov(glmmTMB.ar1)$cond)
#> [1] TRUE

## Variance and Covariance Components
all.equal.nocheck(VarCorr(lme4.ar1)$group,
                  VarCorr(glmmTMB.ar1)$cond$group)
#> [1] TRUE

## Conditional Modes of the Random Effects
all.equal.nocheck(ranef(lme4.ar1)$group, ranef(glmmTMB.ar1)$cond$group)
#> [1] TRUE

## Comparing against the predicted rho value
lme4.ar1.rho <- get.cor1(lme4.ar1)
glmmTMB.ar1.rho <- get.cor1(glmmTMB.ar1)
lme4.ar1.rho; glmmTMB.ar1.rho
#> [1] 0.6821726
#> [1] 0.6821689
all.equal.nocheck(lme4.ar1.rho, glmmTMB.ar1.rho)
#> [1] TRUE

References

Bates, Douglas, Martin Mächler, Ben Bolker, and Steve Walker. 2015. “Fitting Linear Mixed-Effects Models Using lme4.” Journal of Statistical Software 67 (1): 1–48. https://doi.org/10.18637/jss.v067.i01.
