Stripe patterned grobs

grid.pattern_stripe() draws a stripe pattern onto the graphic device.

grid.pattern_stripe(
  x = c(0, 0, 1, 1),
  y = c(1, 0, 0, 1),
  id = 1L,
  ...,
  colour = gp$col %||% "grey20",
  fill = gp$fill %||% "grey80",
  angle = 30,
  density = 0.2,
  spacing = 0.05,
  xoffset = 0,
  yoffset = 0,
  units = "snpc",
  alpha = gp$alpha %||% NA_real_,
  linetype = gp$lty %||% 1,
  linewidth = size %||% gp$lwd %||% 1,
  size = NULL,
  grid = "square",
  default.units = "npc",
  name = NULL,
  gp = gpar(),
  draw = TRUE,
  vp = NULL
)

Arguments

x

A numeric vector or unit object specifying x-locations of the pattern boundary.

y

A numeric vector or unit object specifying y-locations of the pattern boundary.

id

A numeric vector used to separate locations in x, y into multiple boundaries. All locations within the same id belong to the same boundary.

...

Currently ignored.

colour

Stroke colour(s).

fill

Fill colour(s) or grid::pattern() / gradient object(s).

angle

Rotation angle in degrees.

density

Approx. fraction of area the pattern fills.

spacing

Spacing between repetitions of pattern (in units units).

xoffset

Shift pattern along x axis (in units units).

yoffset

Shift pattern along y axis (in units units).

units

grid::unit() units for spacing, xoffset, and yoffset parameters.

alpha

Alpha (between 0 and 1) or NA (default, preserves colors' alpha value).

linetype

Stroke linetype.

linewidth

Stroke linewidth.

size

For backwards compatibility can be used to set linewidth.

grid

Adjusts placement and density of certain graphical elements. "square" (default) is a square grid. "hex" is a hexagonal grid suitable for hexagonal and triangular tiling. "hex_circle" is a hexagonal grid suitable for circle packing. "elongated_triangle" is a grid used for the "elongated triangle" tiling.

default.units

A string indicating the default units to use if x or y are only given as numeric vectors.

name

A character identifier.

gp

An object of class "gpar", typically the output from a call to the function gpar. This is basically a list of graphical parameter settings.

draw

A logical value indicating whether graphics output should be produced.

vp

A Grid viewport object (or NULL).

Value

A grid grob object invisibly. If draw is TRUE then also draws to the graphic device as a side effect.

See also

[grid.pattern_crosshatch()] and [grid.pattern_weave()] for overlaying stripes.

Examples

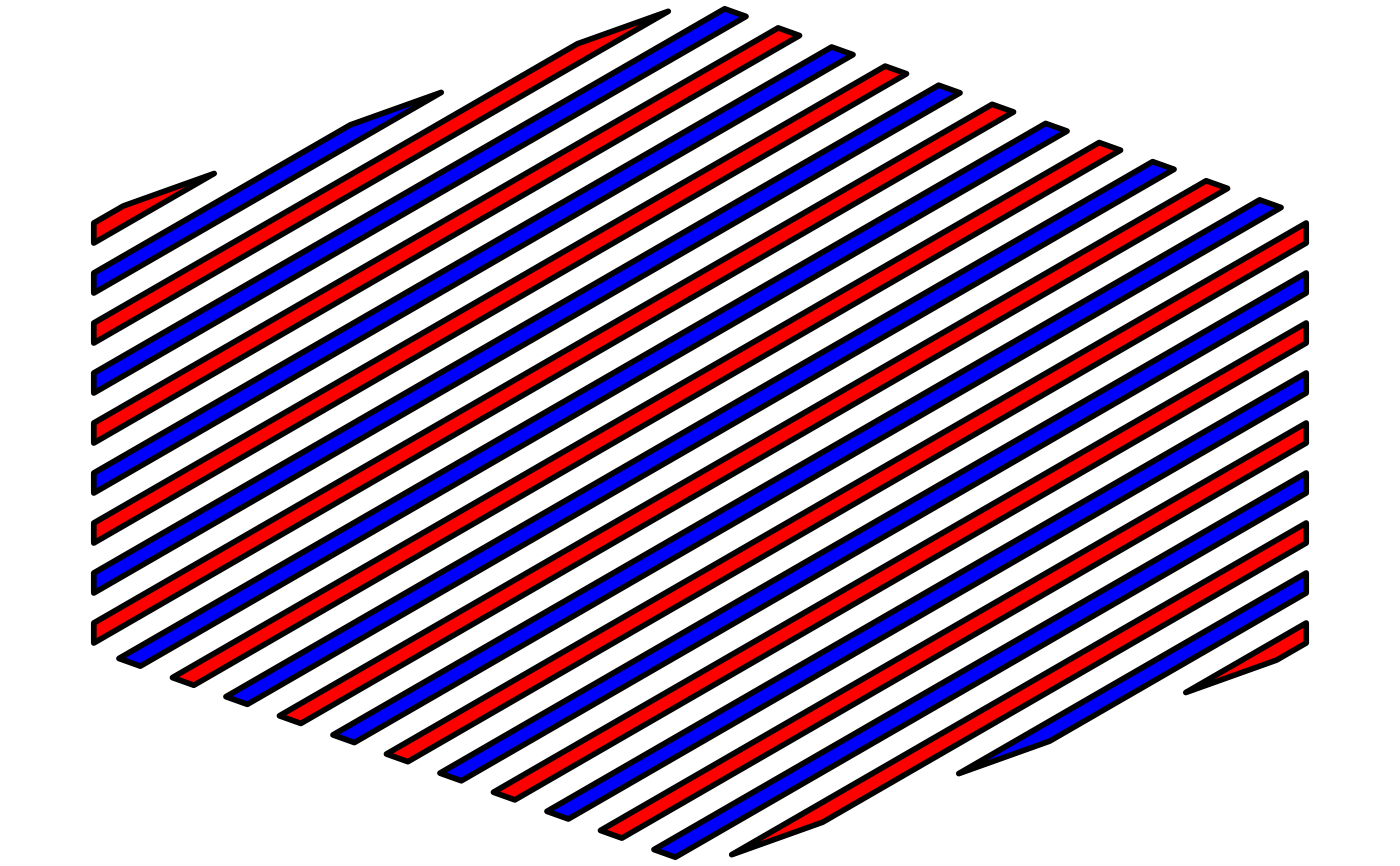

x_hex <- 0.5 + 0.5 * cos(seq(2 * pi / 4, by = 2 * pi / 6, length.out = 6))
y_hex <- 0.5 + 0.5 * sin(seq(2 * pi / 4, by = 2 * pi / 6, length.out = 6))
grid.pattern_stripe(x_hex, y_hex, colour = "black",
                    fill = c("red", "blue"), density = 0.4)

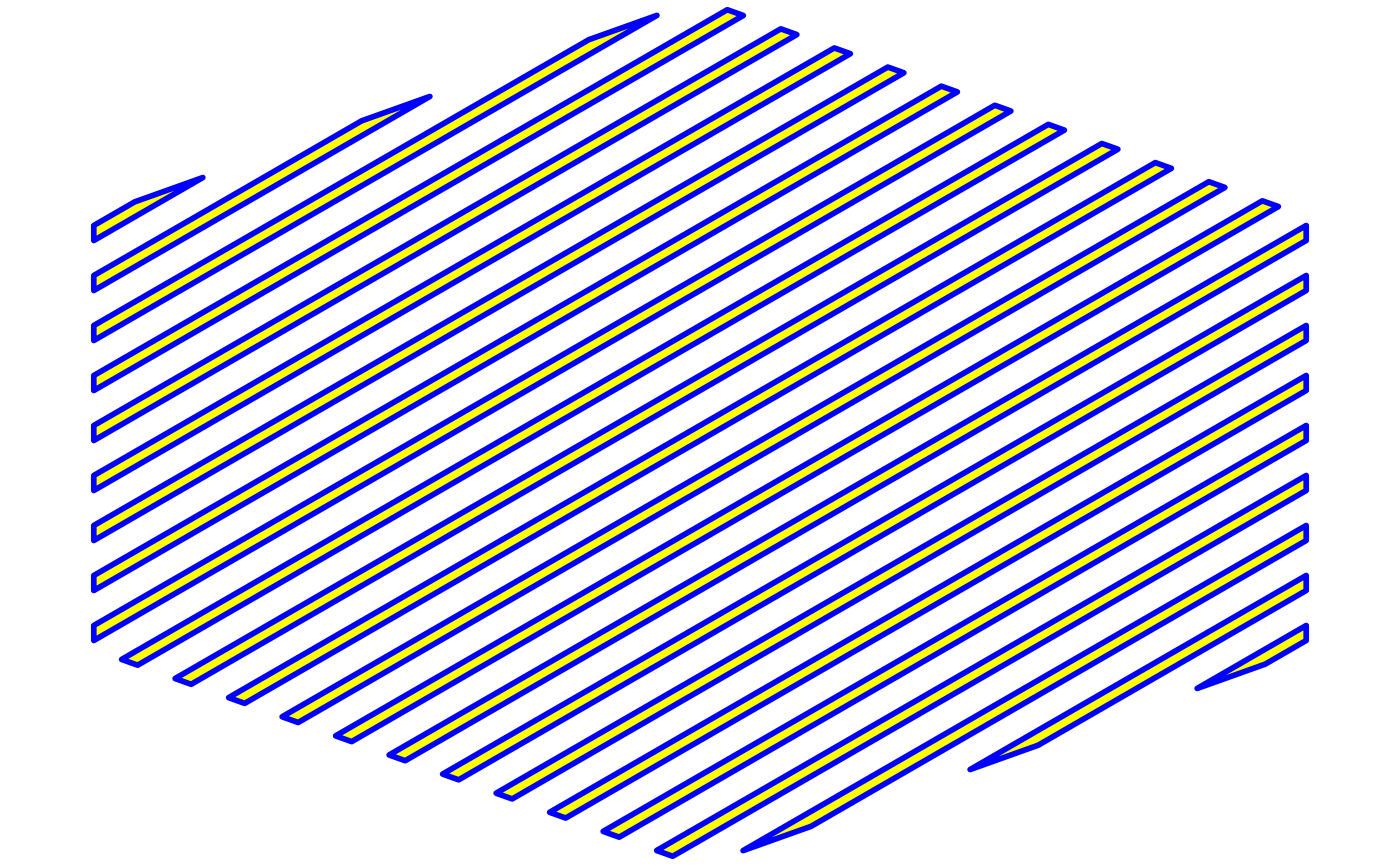

# Can alternatively use "gpar()" to specify colour and line attributes
grid::grid.newpage()
grid.pattern_stripe(x_hex, y_hex, density = 0.3,
                    gp = grid::gpar(col = "blue", fill = "yellow"))
