Rose curve patterned grobs

grid.pattern_rose() draws a rose curve pattern onto the graphic device.

grid.pattern_rose(
  x = c(0, 0, 1, 1),
  y = c(1, 0, 0, 1),
  id = 1L,
  ...,
  colour = gp$col %||% "grey20",
  fill = gp$fill %||% "grey80",
  angle = 30,
  density = 0.2,
  spacing = 0.05,
  xoffset = 0,
  yoffset = 0,
  units = "snpc",
  frequency = 0.1,
  grid = "square",
  type = NULL,
  subtype = NULL,
  rot = 0,
  alpha = gp$alpha %||% NA_real_,
  linetype = gp$lty %||% 1,
  linewidth = size %||% gp$lwd %||% 1,
  size = NULL,
  use_R4.1_masks = getOption("ggpattern_use_R4.1_masks",
    getOption("ggpattern_use_R4.1_features")),
  png_device = NULL,
  res = getOption("ggpattern_res", 72),
  default.units = "npc",
  name = NULL,
  gp = gpar(),
  draw = TRUE,
  vp = NULL
)

Arguments

x: A numeric vector or unit object specifying x-locations of the pattern boundary.
y: A numeric vector or unit object specifying y-locations of the pattern boundary.
id: A numeric vector used to separate locations in x, y into multiple boundaries. All locations within the same id belong to the same boundary.
...: Currently ignored.
colour: Stroke colour(s).
fill: Fill colour(s) or grid::pattern() / gradient object(s).
angle: Rotation angle in degrees.
density: Approx. fraction of area the pattern fills.
spacing: Spacing between repetitions of pattern (in units units).
xoffset: Shift pattern along x axis (in units units).
yoffset: Shift pattern along y axis (in units units).
units: grid::unit() units for spacing, xoffset, and yoffset parameters.
frequency: The “angular frequency” parameter of the rose pattern.
grid: Adjusts placement and density of certain graphical elements. "square" (default) is a square grid. "hex" is a hexagonal grid suitable for hexagonal and triangular tiling. "hex_circle" is a hexagonal grid suitable for circle packing. "elongated_triangle" is a grid used for the "elongated triangle" tiling.
type: Adjusts the repeating of certain aesthetics such as color. Can use any type in names_hex, names_square, or names_weave. See for pattern_hex(), pattern_square(), and pattern_weave() for more information about supported type arguments.
subtype: See for pattern_hex(), pattern_square(), and pattern_weave() for more information about supported subtype arguments.
rot: Angle to rotate rose (degrees, counter-clockwise).
alpha: Alpha (between 0 and 1) or NA (default, preserves colors' alpha value).
linetype: Stroke linetype.
linewidth: Stroke linewidth.
size: For backwards compatibility can be used to set linewidth.
use_R4.1_masks: If TRUE use the grid mask feature introduced in R v4.1.0. If FALSE do a rasterGrob approximation. If NULL try to guess an appropriate choice. Note not all graphic devices support the grid mask feature.
png_device: “png” graphics device to save intermediate raster data with if use_R4.1_masks is FALSE. If NULL and suggested package ragg is available and versions are high enough we directly capture masked raster via ragg::agg_capture(). Otherwise we will use png_device (default ragg::agg_png() if available else grDevices::png()) and png::readPNG() to manually compute a masked raster.
res: Resolution of desired rasterGrob in pixels per inch if use_R4.1_masks is FALSE.
default.units: A string indicating the default units to use if x or y are only given as numeric vectors.
name: A character identifier.
gp: An object of class "gpar", typically the output from a call to the function gpar. This is basically a list of graphical parameter settings.
draw: A logical value indicating whether graphics output should be produced.
vp: A Grid viewport object (or NULL).

Value

A grid grob object invisibly. If draw is TRUE then also draws to the graphic device as a side effect.

Examples

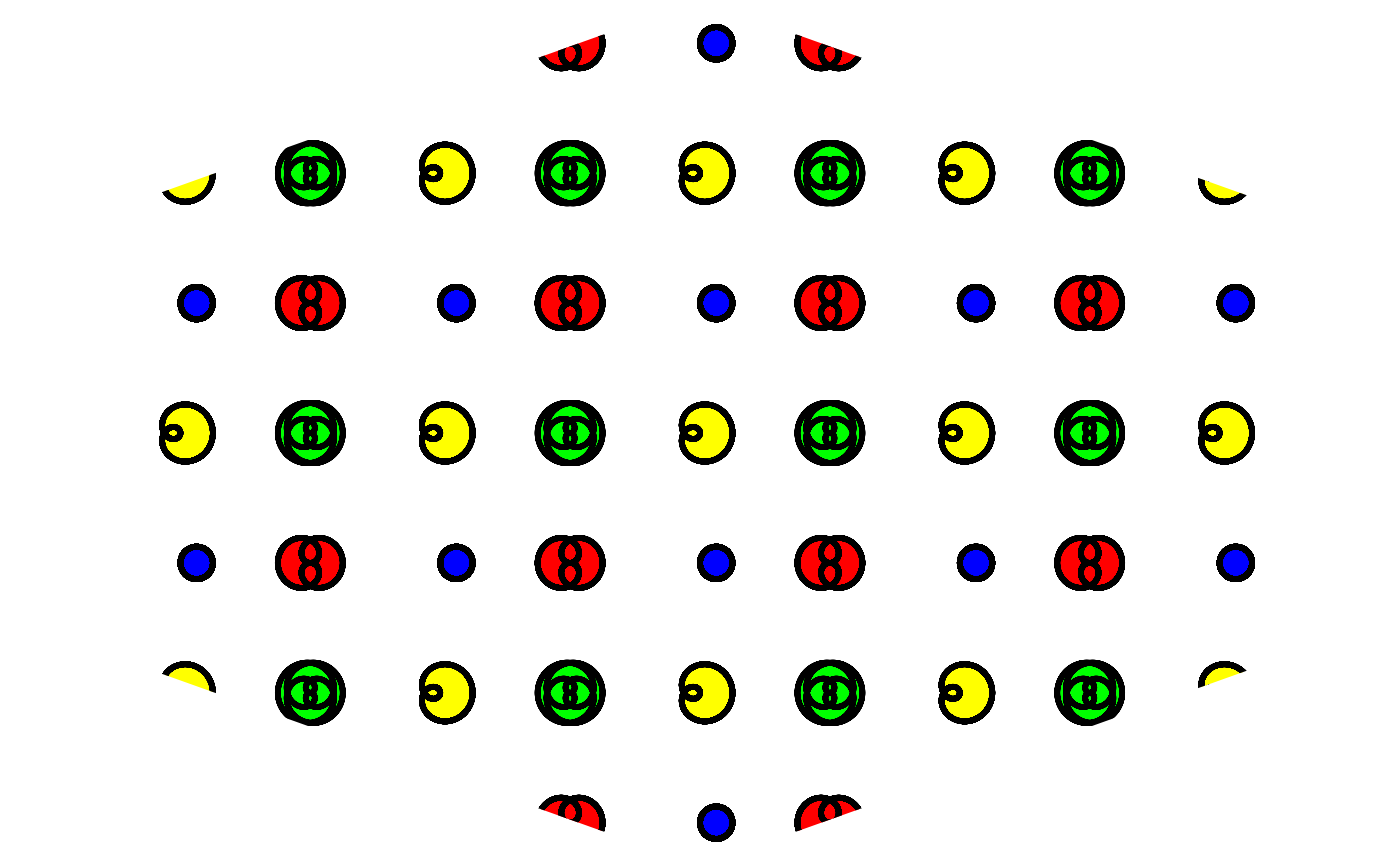

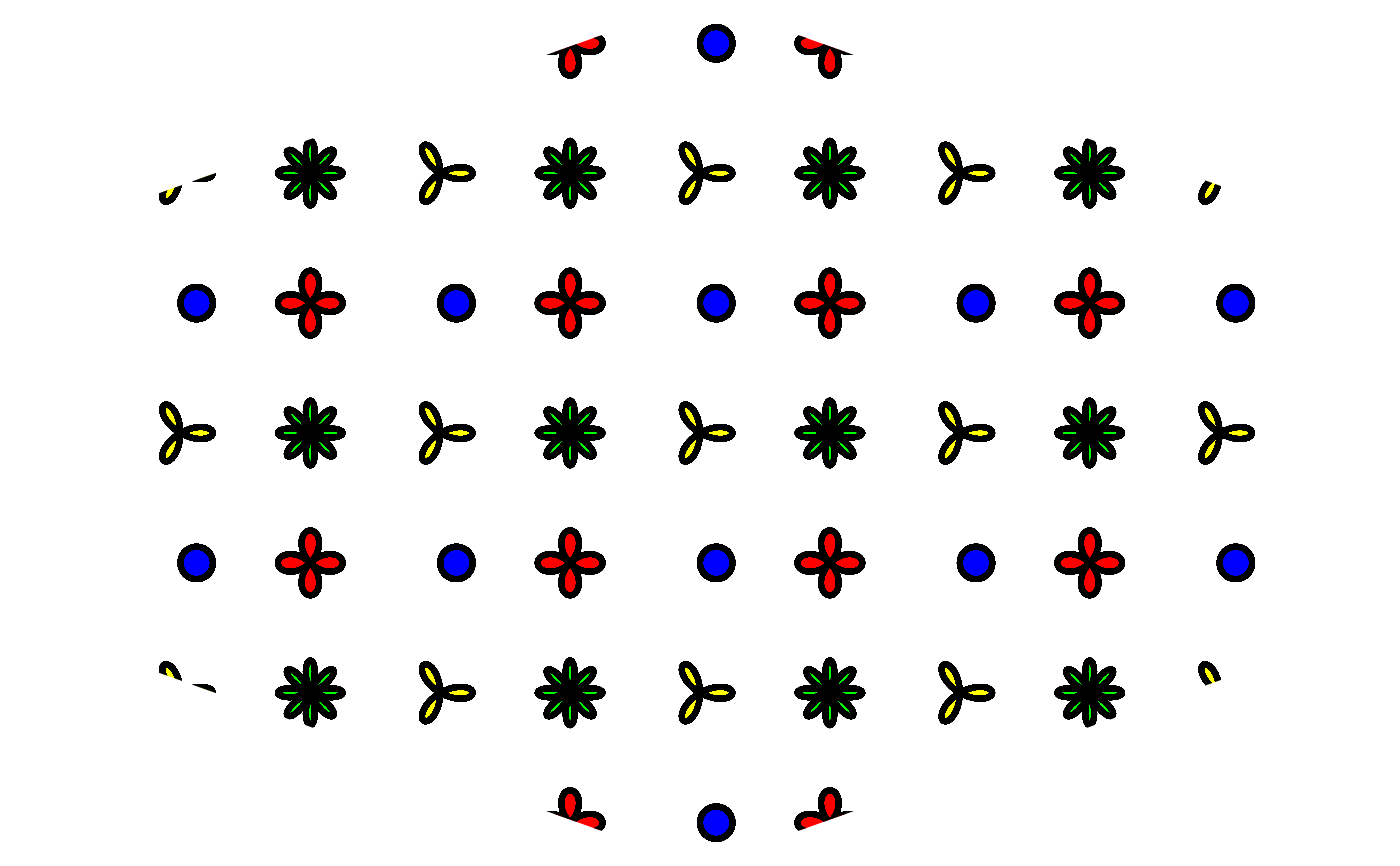

  if (capabilities("png") || guess_has_R4.1_features("masks")) {
    x_hex <- 0.5 + 0.5 * cos(seq(2 * pi / 4, by = 2 * pi / 6, length.out = 6))
    y_hex <- 0.5 + 0.5 * sin(seq(2 * pi / 4, by = 2 * pi / 6, length.out = 6))
    gp <- grid::gpar(fill = c("blue", "red", "yellow", "green"), col = "black")
    grid.pattern_rose(x_hex, y_hex,
                      spacing = 0.15, density = 0.5, angle = 0,
                      frequency = 1:4, gp = gp)
  }

  if (capabilities("png") || guess_has_R4.1_features("masks")) {
    grid::grid.newpage()
    grid.pattern_rose(x_hex, y_hex,
                      spacing = 0.15, density = 0.5, angle = 0,
                      frequency = 1/1:4, gp = gp)
  }

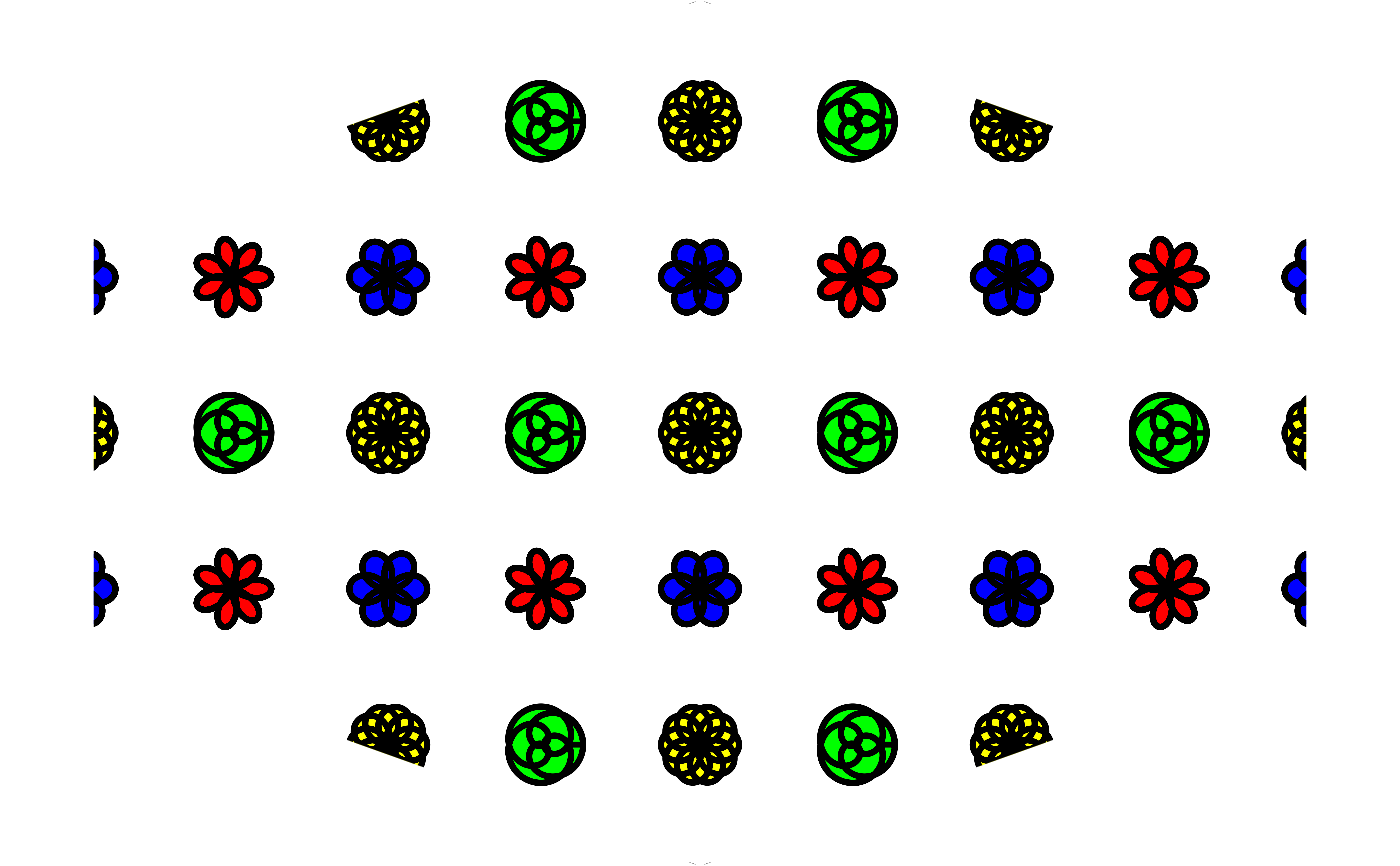

  if (capabilities("png") || guess_has_R4.1_features("masks")) {
    grid::grid.newpage()
    grid.pattern_rose(x_hex, y_hex,
                      spacing = 0.18, density = 0.5, angle = 0,
                      frequency = c(3/2, 7/3, 5/4, 3/7), gp = gp)
  }
