Mask grob using another grob to specify the (alpha) mask

alphaMaskGrob() masks a grob using another grob to specify the (alpha) mask.

alphaMaskGrob(
  maskee,
  masker,
  use_R4.1_masks = getOption("ggpattern_use_R4.1_masks",
    getOption("ggpattern_use_R4.1_features")),
  png_device = NULL,
  res = getOption("ggpattern_res", 72),
  name = NULL,
  gp = gpar(),
  vp = NULL
)

Arguments

maskee

Grob to be masked

masker

Grob that defines masking region

use_R4.1_masks

If TRUE use the grid mask feature introduced in R v4.1.0. If FALSE do a rasterGrob approximation. If NULL try to guess an appropriate choice. Note not all graphic devices support the grid mask feature.

png_device

“png” graphics device to save intermediate raster data with if use_R4.1_masks is FALSE. If NULL and suggested package ragg is available and versions are high enough we directly capture masked raster via ragg::agg_capture(). Otherwise we will use png_device (default ragg::agg_png() if available else grDevices::png()) and png::readPNG() to manually compute a masked raster.

res

Resolution of desired rasterGrob in pixels per inch if use_R4.1_masks is FALSE.

name

A character identifier.

gp

An object of class "gpar", typically the output from a call to the function gpar. This is basically a list of graphical parameter settings.

vp

A Grid viewport object (or NULL).

Value

A grid grob

Examples

  # May take more than 5 seconds on CRAN servers

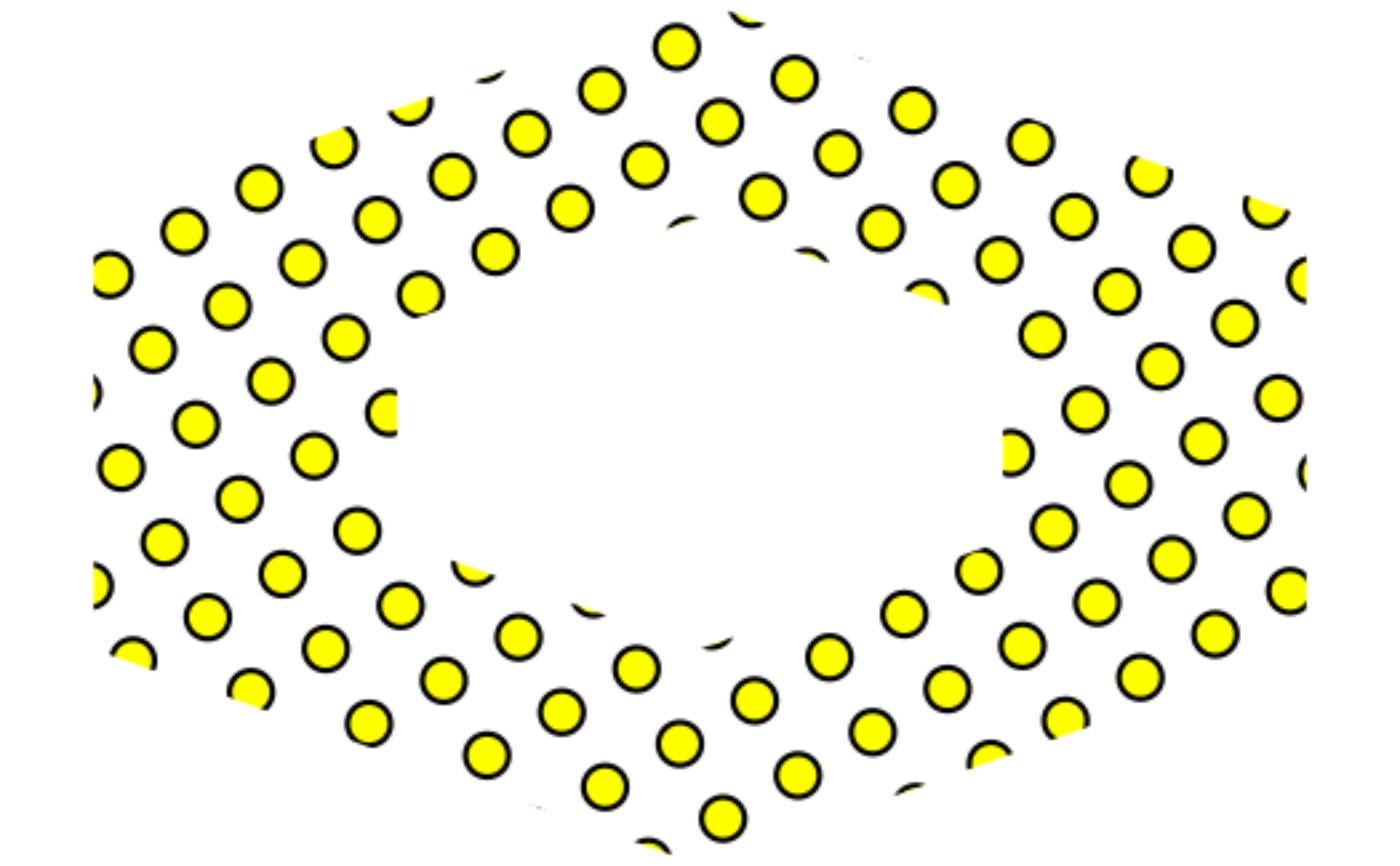

  if (capabilities("png") && require("grid")) {
    maskee <- patternGrob("circle", gp = gpar(col = "black", fill = "yellow"),
                           spacing = 0.1, density = 0.5)
    angle <- seq(2 * pi / 4, by = 2 * pi / 6, length.out = 7)
    x_hex_outer <- 0.5 + 0.5 * cos(angle)
    y_hex_outer <- 0.5 + 0.5 * sin(angle)
    x_hex_inner <- 0.5 + 0.25 * cos(rev(angle))
    y_hex_inner <- 0.5 + 0.25 * sin(rev(angle))
    gp <- gpar(lwd = 0, col = NA, fill = "white")
    masker <- grid::pathGrob(x = c(x_hex_outer, x_hex_inner),
                             y = c(y_hex_outer, y_hex_inner),
                             id = rep(1:2, each = 7),
                             rule = "evenodd", gp = gp)
    masked <- alphaMaskGrob(maskee, masker, use_R4.1_masks = FALSE)
    grid.draw(masked)
  }
#> Loading required package: grid

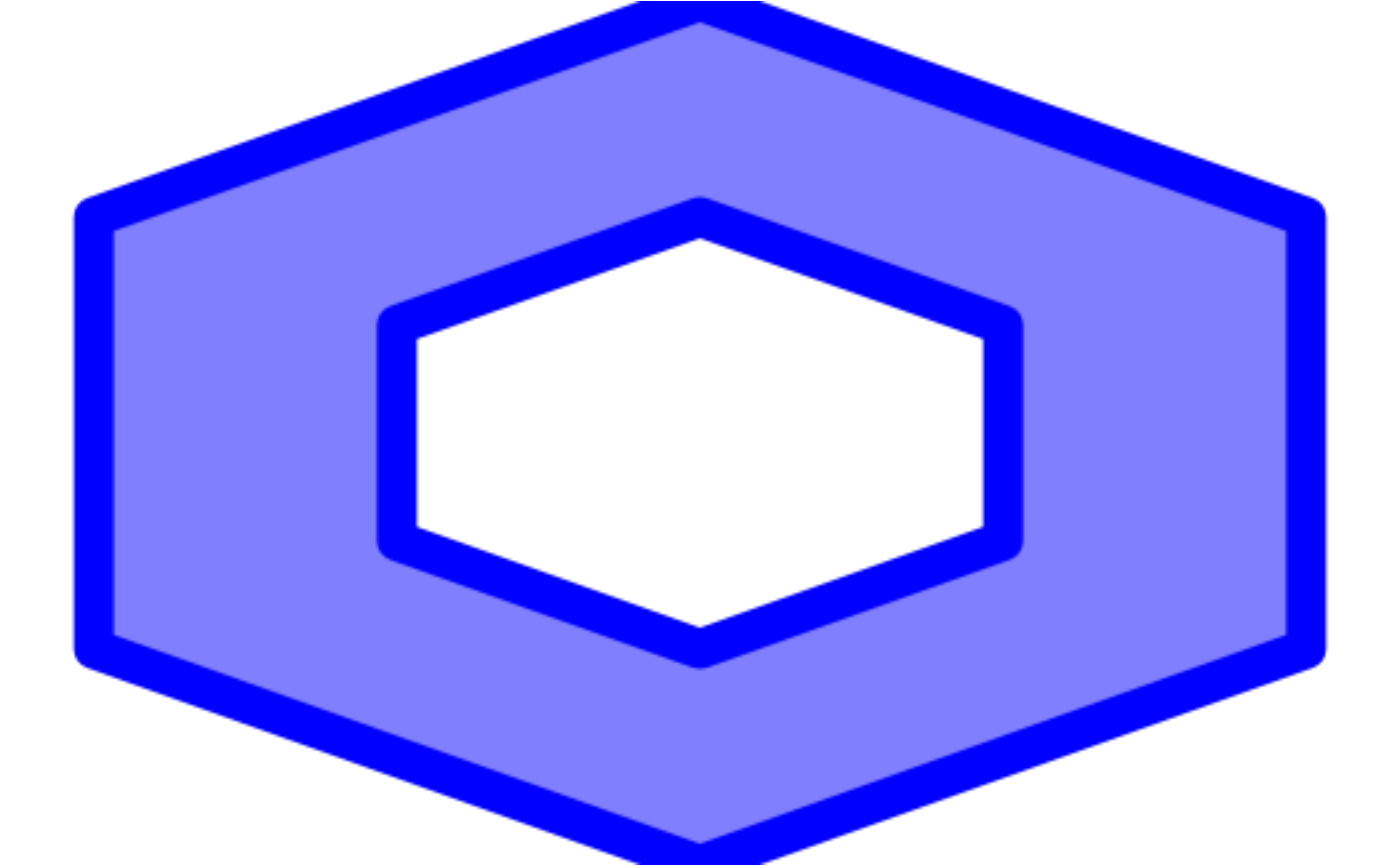

  if (capabilities("png") && require("grid")) {
    maskee_transparent <- rectGrob(gp = gpar(col = NA, fill = "blue"))
    gp <- gpar(lwd = 20, col = "black", fill = grDevices::rgb(0, 0, 0, 0.5))
    masker_transparent <- editGrob(masker, gp = gp)
    masked_transparent <- alphaMaskGrob(maskee_transparent,
                                        masker_transparent,
                                        use_R4.1_masks = FALSE)
    grid.newpage()
    grid.draw(masked_transparent)
  }
