electric network symbols

Adds a resistor, capacitator, node, amplifier, ... to a diagrom

en.Resistor (mid, width = 0.05, length = 0.1, lab = NULL, pos = 0,
   dtext = 0., vert = TRUE, ...)

en.Capacitator (mid, width = 0.025, length = 0.1, lab = NULL,
   pos = 2.5, dtext = 0.04, vert = TRUE, ...)

en.Transistor (mid, gate, drain, source, r = 0.05, lab = NULL,
   pos = 0, dtext = 0, ...)

en.Node(mid, cex = 1, lab = NULL, pos = 2.5, dtext = 0.025,  ...)

en.Amplifier(mid, r = 0.05, lab = NULL, pos = 0, dtext = 0, ...)

en.Signal(mid, r = 0.03, lab = NULL, pos = 0, dtext = 0.025, ...)

en.Ground(mid, width = 0.075, length = 0.1, n = 4, dx = 0.2, ...)

enResistor(...)

Arguments

mid

midpoint (x,y) of the symbol.

width

width of the symbol.

length

length of the symbol.

lab

one label to be added in the symbol.

pos

position of the label in the symbol; 1 = below; 2 = left; 3 = upper, 4 = right; 1.5 = below-left, ...

dtext

shift in x- and/or y-direction for the text

vert

if TRUE then vertically arranged

gate

position (x,y) of the gate terminal of the en.Transistor.

drain

position (x,y) of the drain terminal of the en.Transistor.

source

position (x,y) of the source terminal of the en.Transistor.

r

radius of en.Signal and en.Amplifier

cex

size of node pch (en.Node)

n

number of horizontal lines in (en.Ground)

dx

size reduction of horizontal lines in (en.Ground)

...

other arguments passed to functions.

Author

Karline Soetaert <karline.soetaert@nioz.nl>.

Note

enResistor is synonymous for en.Resistor (to trick the builder in adding this help file to the package)

Details

Created for drawing the electrical network in the book Soetaert Karline, Jeff Cash and Francesca Mazzia. Solving differential equations in R. Springer.

Examples

## =============================================================================

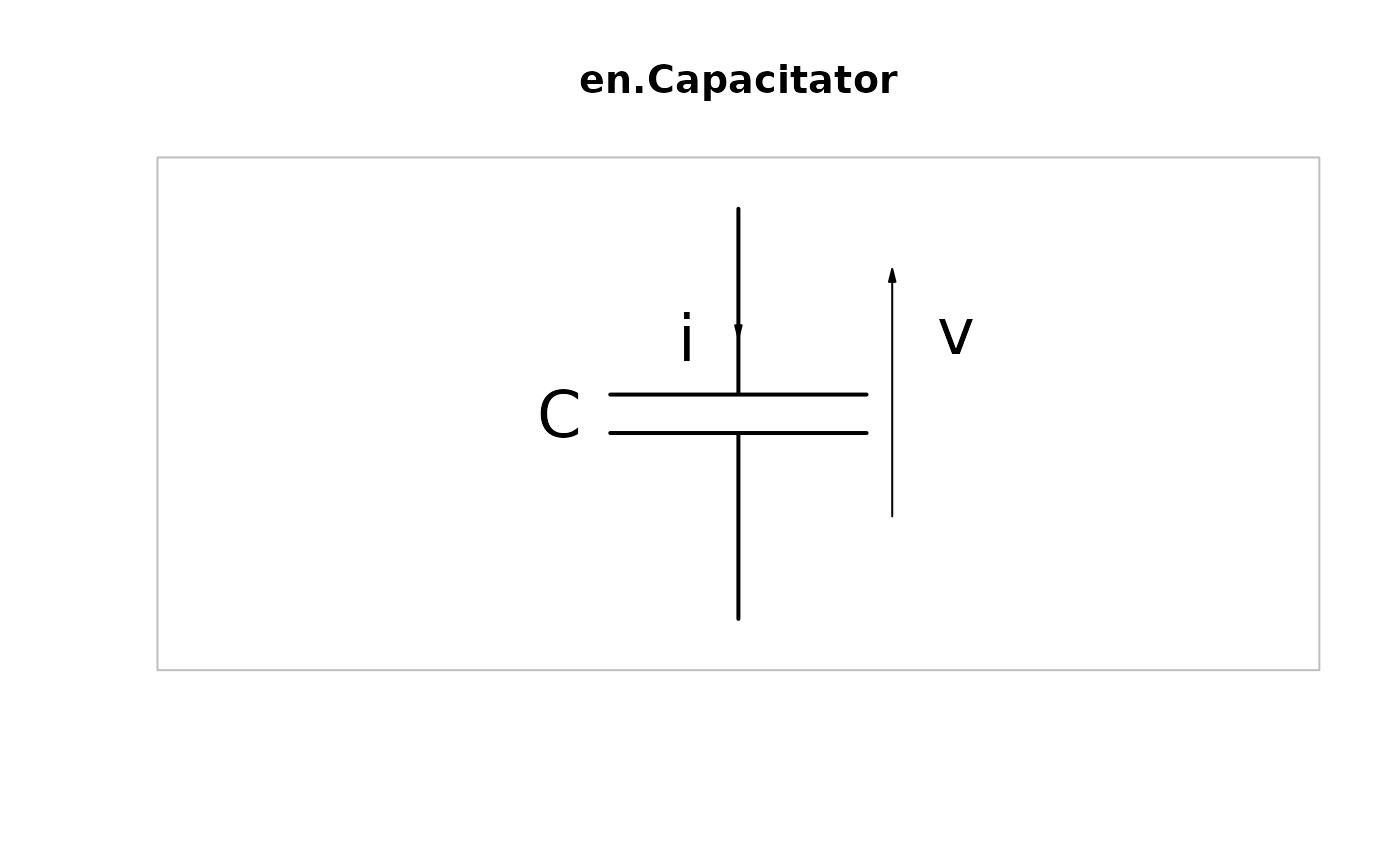

## en.Capacitator
## =============================================================================

emptyplot(main = "en.Capacitator")
straightarrow(c(0.5, 0.9), c(0.5, 0.1),
              arr.pos = 0.3, arr.length = 0.25, arr.type = "triangle")
en.Capacitator(c(0.5, 0.5), width = 0.075, length = 0.5, vert = TRUE)
text(0.4, 0.65, "i", font = 3, cex = 2)
straightarrow(c(0.8, 0.3), c(0.8, 0.77), arr.pos = 1,
              arr.length = 0.25, arr.type = "triangle", lwd = 1)
text(0.925, 0.65, "v", font = 3, cex = 2)
text(0.15, 0.5, "C", font = 3, cex = 2)
box(col = "grey")


## =============================================================================

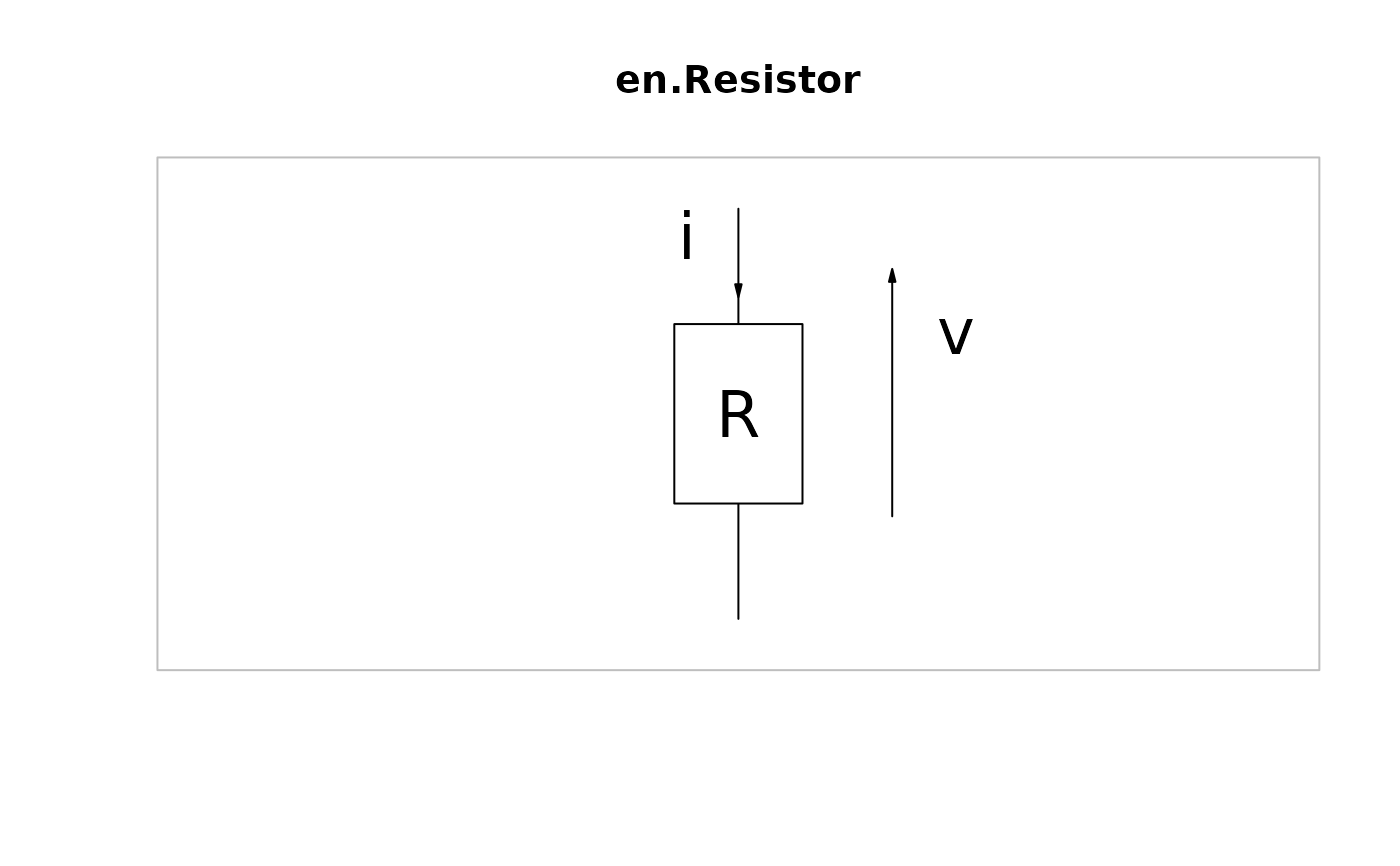

## en.Resistor
## =============================================================================

emptyplot(main = "en.Resistor")
straightarrow(c(0.5, 0.9), c(0.5, 0.1), arr.pos = 0.2,
              arr.length = 0.25, arr.type = "triangle", lwd = 1)
text(0.4, 0.85, "i", font = 3, cex = 2)
en.Resistor(c(0.5, 0.5), width = 0.25, length = 0.35 )
straightarrow(c(0.8, 0.3), c(0.8, 0.77), arr.pos = 1,
              arr.length = 0.25, arr.type = "triangle", lwd = 1)
text(0.925, 0.65, "v", font = 3, cex = 2)
text(0.5, 0.5, "R", font = 3, cex = 2)
box(col = "grey")


## =============================================================================

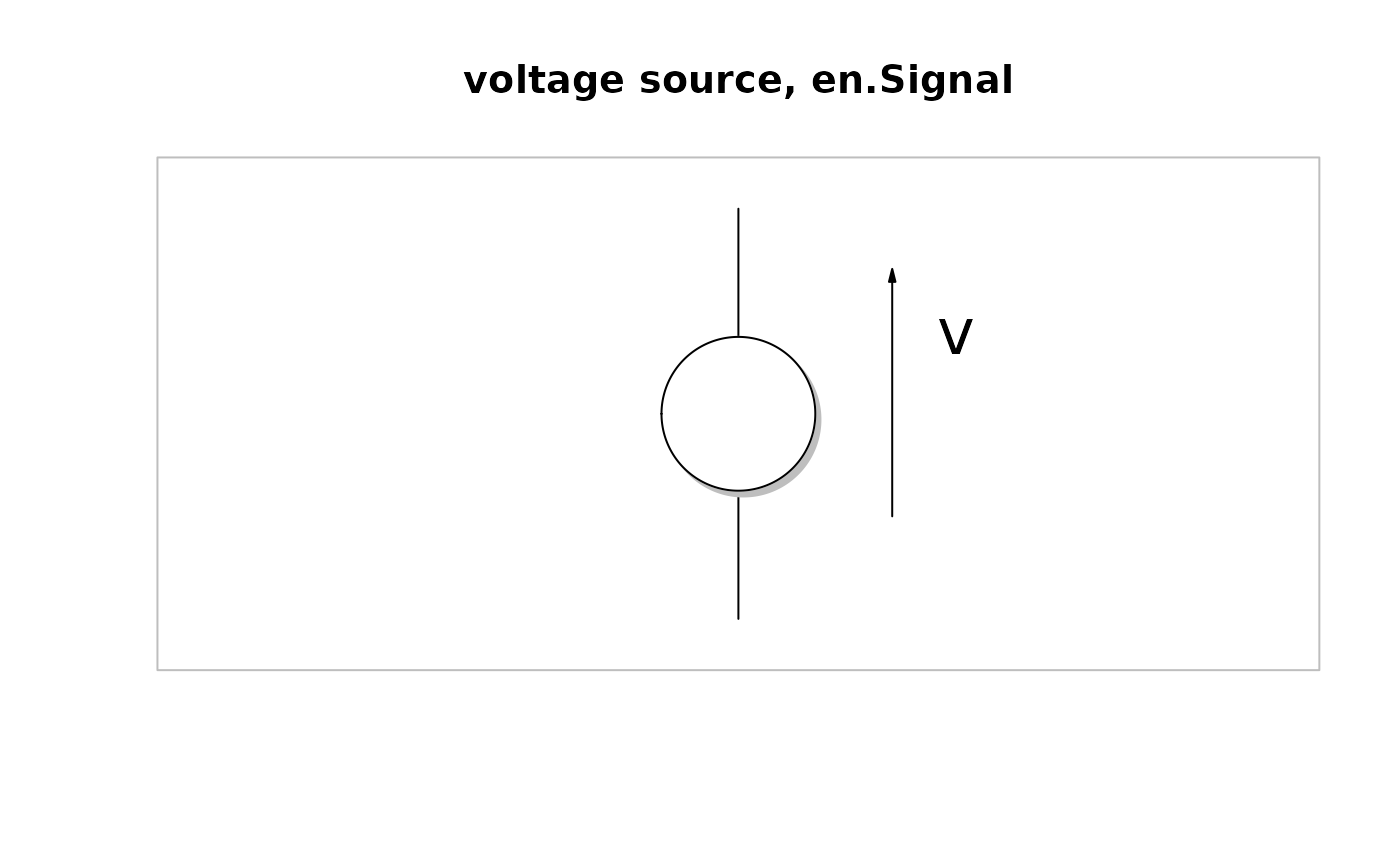

## en.Signal
## =============================================================================

emptyplot(main = "voltage source, en.Signal")
lines(c(0.5, 0.5), c(0.1, 0.9))
en.Signal(c(0.5, 0.5), r = 0.15)
straightarrow(c(0.8, 0.3), c(0.8, 0.77), arr.pos = 1,
              arr.length = 0.25, arr.type = "triangle", lwd = 1)
text(0.925, 0.65, "v", font = 3, cex = 2)
box(col = "grey")


## =============================================================================

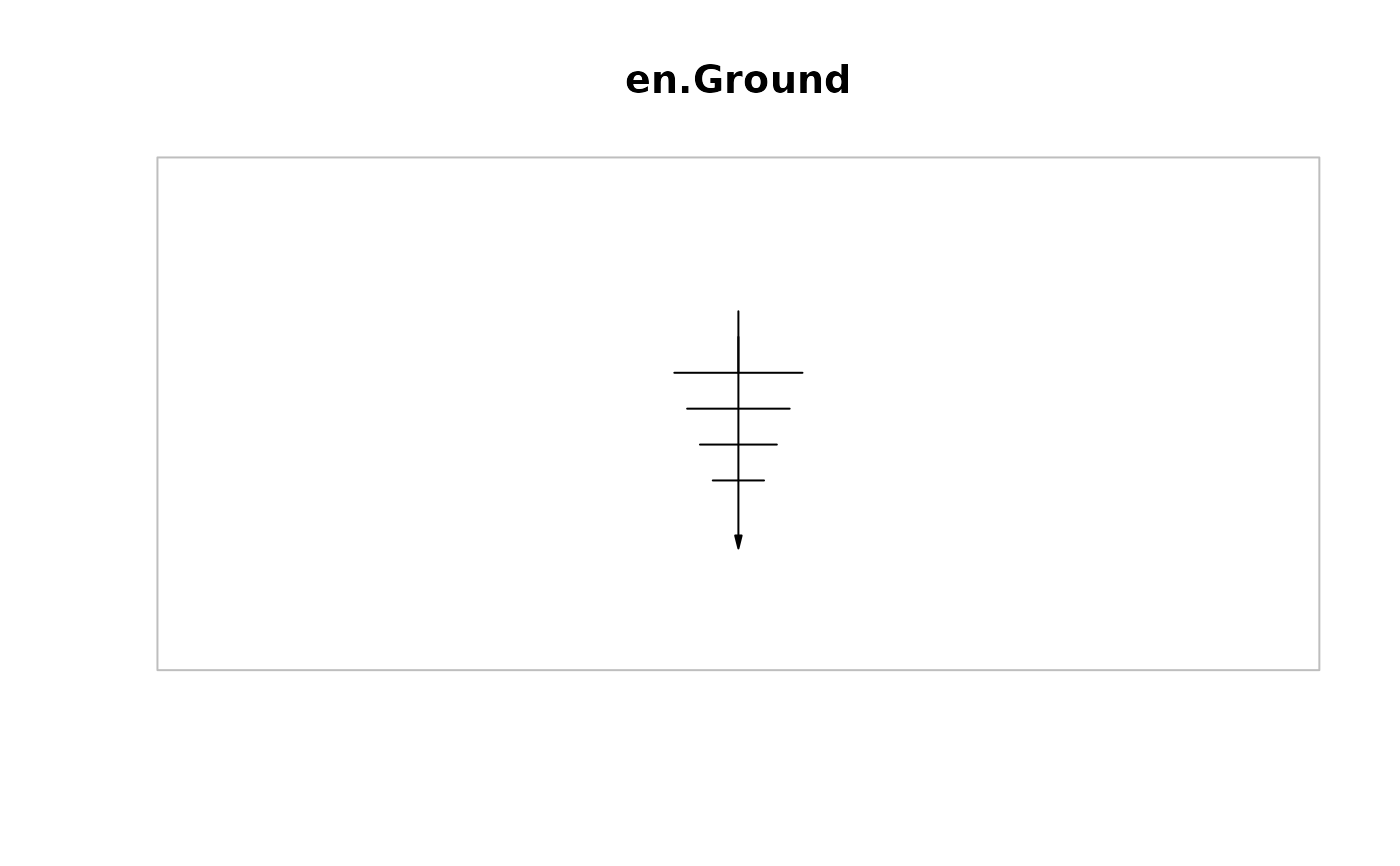

## en.Ground
## =============================================================================

emptyplot(main = "en.Ground")
straightarrow(c(0.5, 0.7), c(0.5, 0.25), arr.pos = 1.0,
              arr.length = 0.25, arr.type = "triangle", lwd = 1)
en.Ground(c(0.5, 0.65), width = 0.25, length = 0.35 )
box(col = "grey")


## =============================================================================

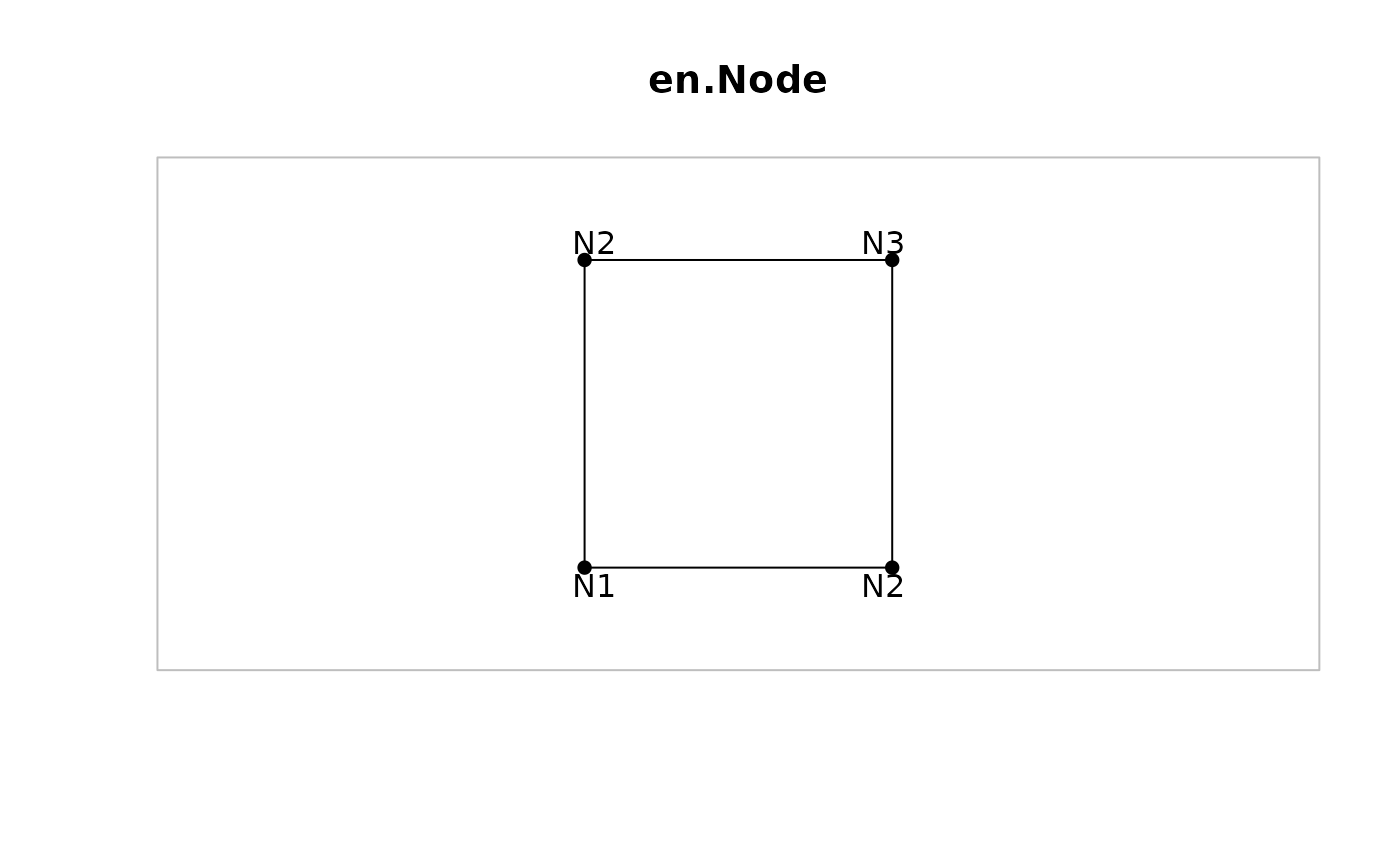

## en.Node
## =============================================================================

emptyplot(main = "en.Node")
rect(0.2, 0.2, 0.8, 0.8)
en.Node(c(0.2, 0.2), lab = "N1" , pos = 1.5)
en.Node(c(0.2, 0.8), lab = "N2" , pos = 2.5)
en.Node(c(0.8, 0.8), lab = "N3" , pos = 3.5)
en.Node(c(0.8, 0.2), lab = "N2" , pos = 4.5)
box(col = "grey")



## =============================================================================
## en.Amplifier example
## =============================================================================

emptyplot(main = "en.Amplifier")
en.Amplifier(c(0.5, 0.5), r = 0.15)
box(col = "grey")


## =============================================================================

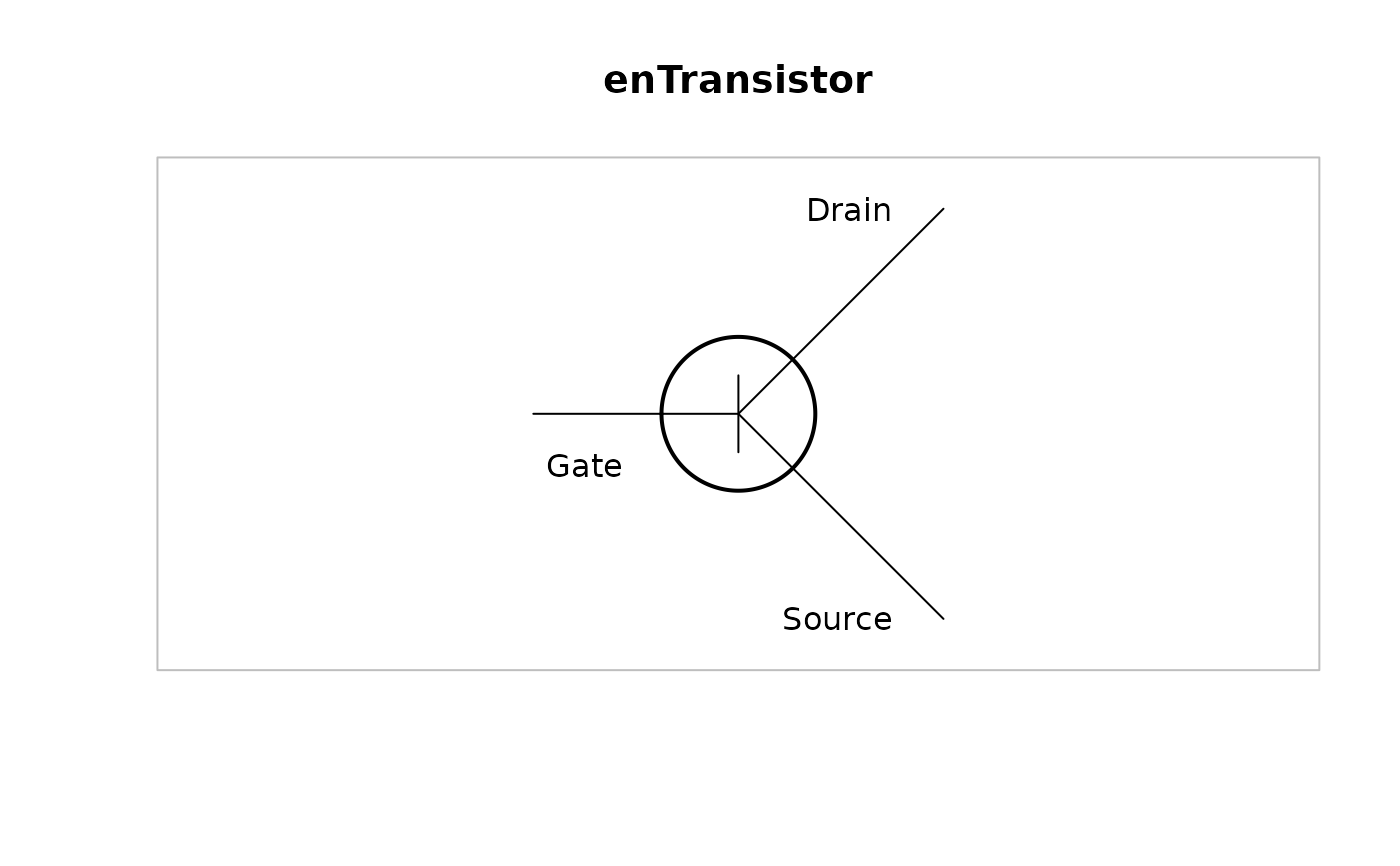

## en.Transistor example
## =============================================================================

emptyplot(main = "enTransistor")
gate <- c(0.1, 0.5)
mid <- c(0.5, 0.5)
drain <- c(0.9, 0.9)
source <- c(0.9, 0.1)
en.Transistor(mid = mid, gate = gate, drain = drain,
    source = source, r = 0.15)
text(0.2, 0.4, "Gate", font = 3)
text(0.8, 0.9, "Drain", font = 3, adj = 1)
text(0.8, 0.1, "Source", font = 3, adj = 1)

box(col = "grey")


## =============================================================================

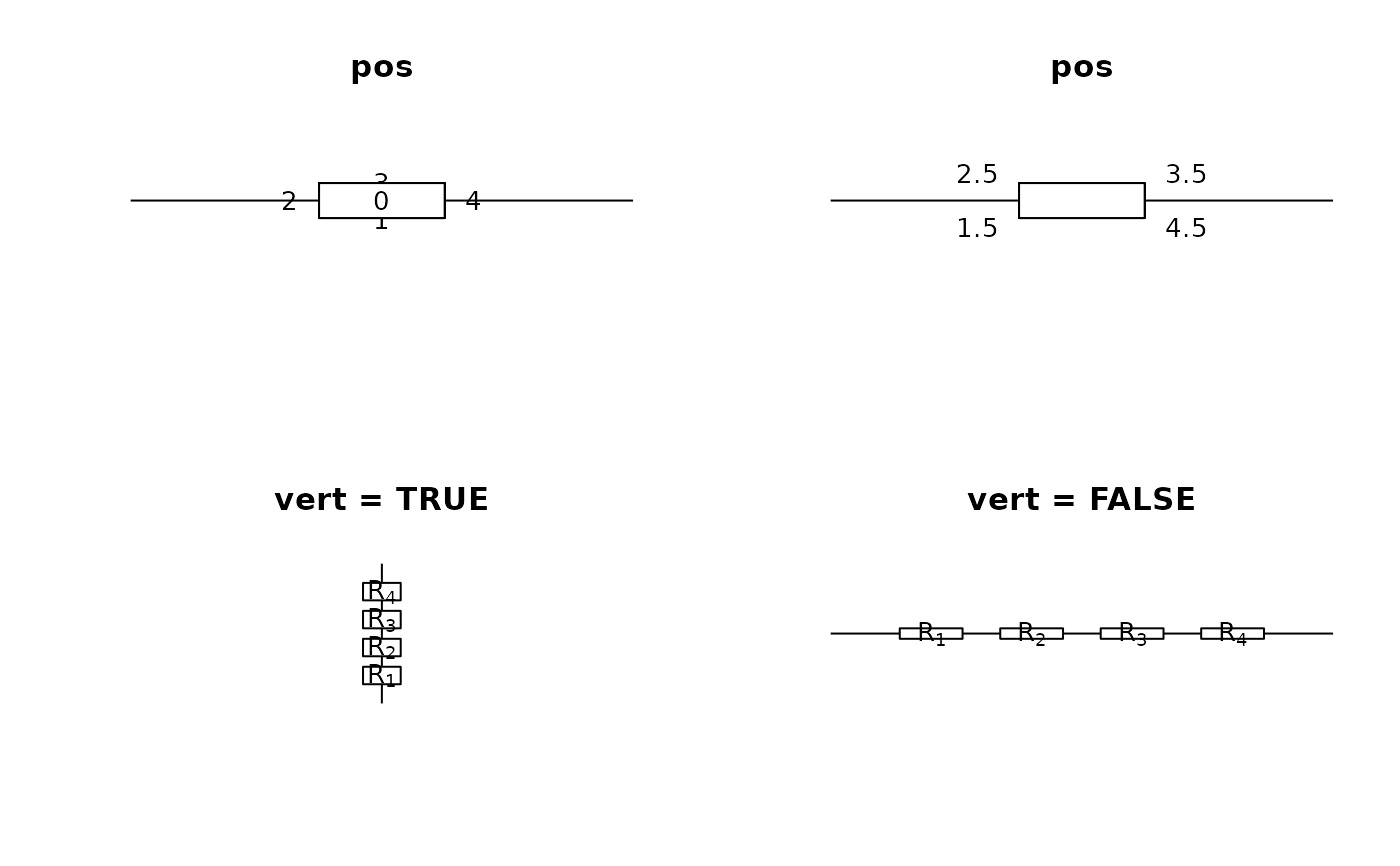

## position of text examples
## =============================================================================

mf <- par (mfrow = c(2, 2))
openplotmat(main = "pos")
segments(0, 0.5, 1, 0.5)
for (i in 4:0)
  en.Resistor( mid = c(0.5, 0.5), width = 0.25, length = 0.25,
               lab = i, pos = i, dtext = 0.2)

openplotmat(main = "pos")
segments(0, 0.5, 1, 0.5)
for (i in 1:4)
  en.Resistor( mid = c(0.5, 0.5), width = 0.25, length = 0.25,
               lab = i+0.5, pos = i+0.5, dtext = 0.25)

openplotmat(main = "vert = TRUE")
segments(0.5, 0, 0.5, 1)

for (i in 1:4)
  en.Resistor( mid = c(0.5, i/5), width = 0.075, length = 0.125,
               lab = substitute(R[i], list(i = i) ))


openplotmat(main = "vert = FALSE")
segments(0, 0.5, 1, 0.5)
for (i in 1:4)
  en.Resistor( mid = c(i/5, 0.5), width = 0.075, length = 0.125,
               lab = substitute(R[i], list(i = i) ), vert = FALSE)


par(mfrow = mf)

## =============================================================================

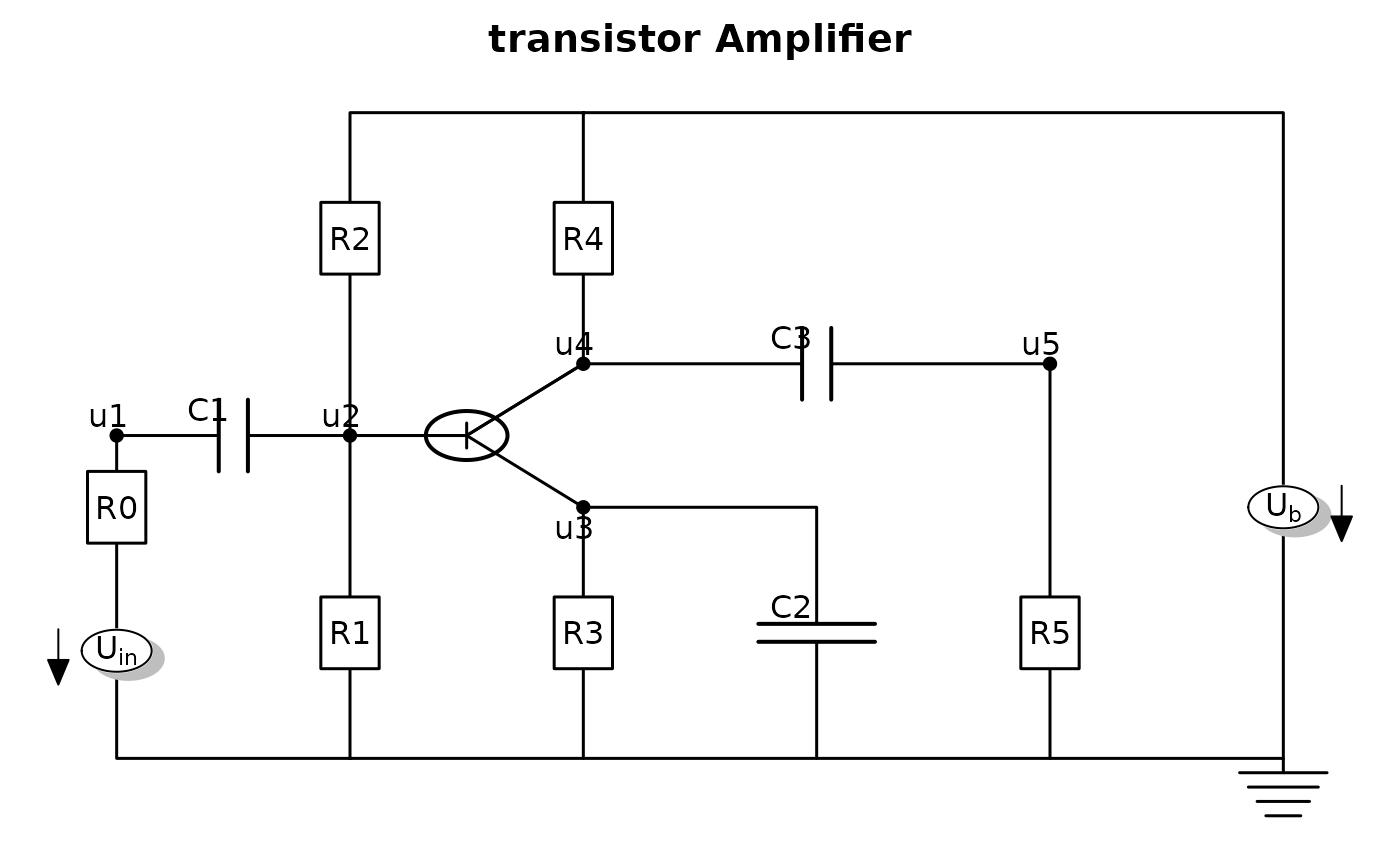

## A small transistor example
## =============================================================================

par(lwd = 1.5)
par(mar = c(0, 0, 2, 0))
emptyplot(main = "transistor Amplifier",
          ylim = c(-0.1, 1), xlim = c(-0.1, 1.1),
          asp = FALSE)
x1 <- 0; x2 <- 0.2; x3 <- 0.4; x4 <- 0.6; x5 <- 0.8; x6 <- 1;
y1 <- 0.05; y2 <- 0.4; y3 <- 0.5; y4 <- 0.6; y5 <- 0.95
x23 <- (x2 + x3)/2
x56 <- (x5 + x6)/2
lines(c(x2, x6, x6, x2, x2, x1, x1, x23, x3, x3),
      c(y1, y1, y5, y5, y1, y1, y3, y3,  y4, y5))
lines(c(x3, x3),
      c(y2, y1))
lines(c(x3,  x4,  x4),
      c(y2,  y2,  y1))
lines(c(x3,  x5, x5),
      c(y4,  y4, y1))

en.Transistor(mid = c(x23, y3), gate = c(x2, y3),
              drain = c(x3,y4), source = c(x3,y2), r = 0.035)

en.Signal(c(x1, 0.2), lab = expression("U"["in"]))
en.Signal(c(x6, y2), lab = expression("U"["b"]))
straightarrow(c(x1 - 0.05, 0.23), c(x1 - 0.05, 0.17),
              arr.pos =1, arr.type = "triangle", lwd = 1)
straightarrow(c(x6 + 0.05, y2 + 0.03), c(x6 + 0.05, y2 - 0.03),
              arr.pos = 1, arr.type = "triangle", lwd = 1)

en.Node(c(x1, y3), lab = "u1")
en.Node(c(x2, y3), lab = "u2")
en.Node(c(x3, y2), lab = "u3", pos = 1.5)
en.Node(c(x3, y4), lab = "u4", pos = 2.5)
en.Node(c(x5, y4), lab = "u5")

en.Capacitator(c(0.5*(x1 + x2),y3), lab = "C1", vert = FALSE)
en.Capacitator(c(x4, y4), lab = "C3", vert = FALSE)
en.Capacitator(c(x4, 0.5*(y1+y2)), lab = "C2", vert = TRUE)

en.Resistor(c(x1, y2), lab = "R0")
en.Resistor(c(x2, 0.5*(y1+y2)), lab = "R1")
en.Resistor(c(x2, 0.5*(y4+y5)), lab = "R2")
en.Resistor(c(x3, 0.5*(y4+y5)), lab = "R4")
en.Resistor(c(x3, 0.5*(y1+y2)), lab = "R3")
en.Resistor(c(x5, 0.5*(y1+y2)), lab = "R5")

en.Ground(c(1.0, 0.05))
