Stack multiple grobs

Source: R/utils_grid.R

[Deprecated]

Stack grobs as a new grob with 1 column and multiple rows layout.

stack_grobs(
  ...,
  grobs = list(...),
  padding = grid::unit(2, "line"),
  vp = NULL,
  gp = NULL,
  name = NULL
)

Arguments

...

grobs.

grobs

(list of grob)
a list of grobs.

padding

(grid::unit)
unit of length 1, space between each grob.

vp

(viewport or NULL)
a viewport() object (or NULL).

gp

(gpar)
a gpar() object.

name

(string)
a character identifier for the grob.

Value

A grob.

Examples

library(grid)

g1 <- circleGrob(gp = gpar(col = "blue"))
g2 <- circleGrob(gp = gpar(col = "red"))
g3 <- textGrob("TEST TEXT")

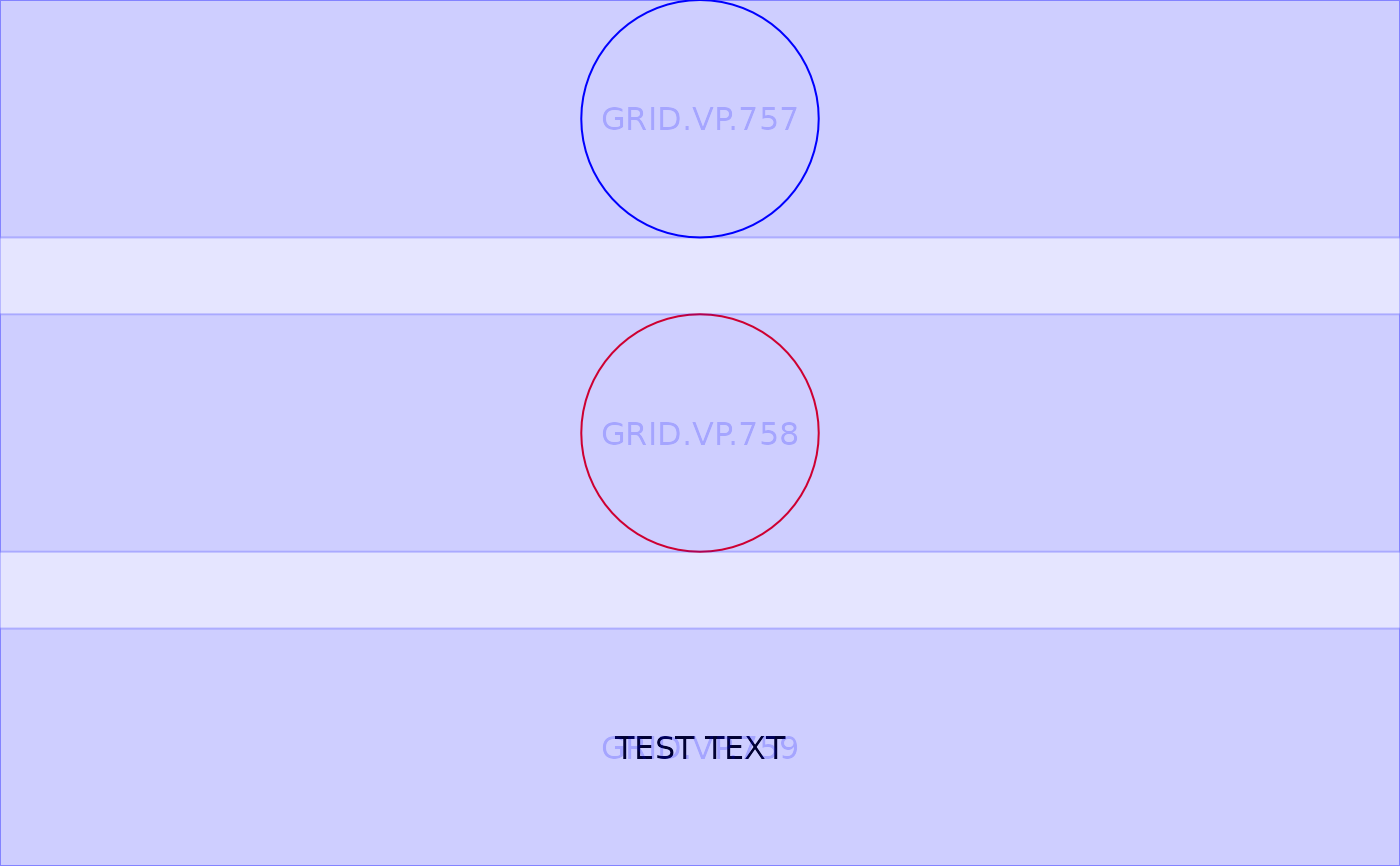

grid.newpage()
grid.draw(stack_grobs(g1, g2, g3))

showViewport()

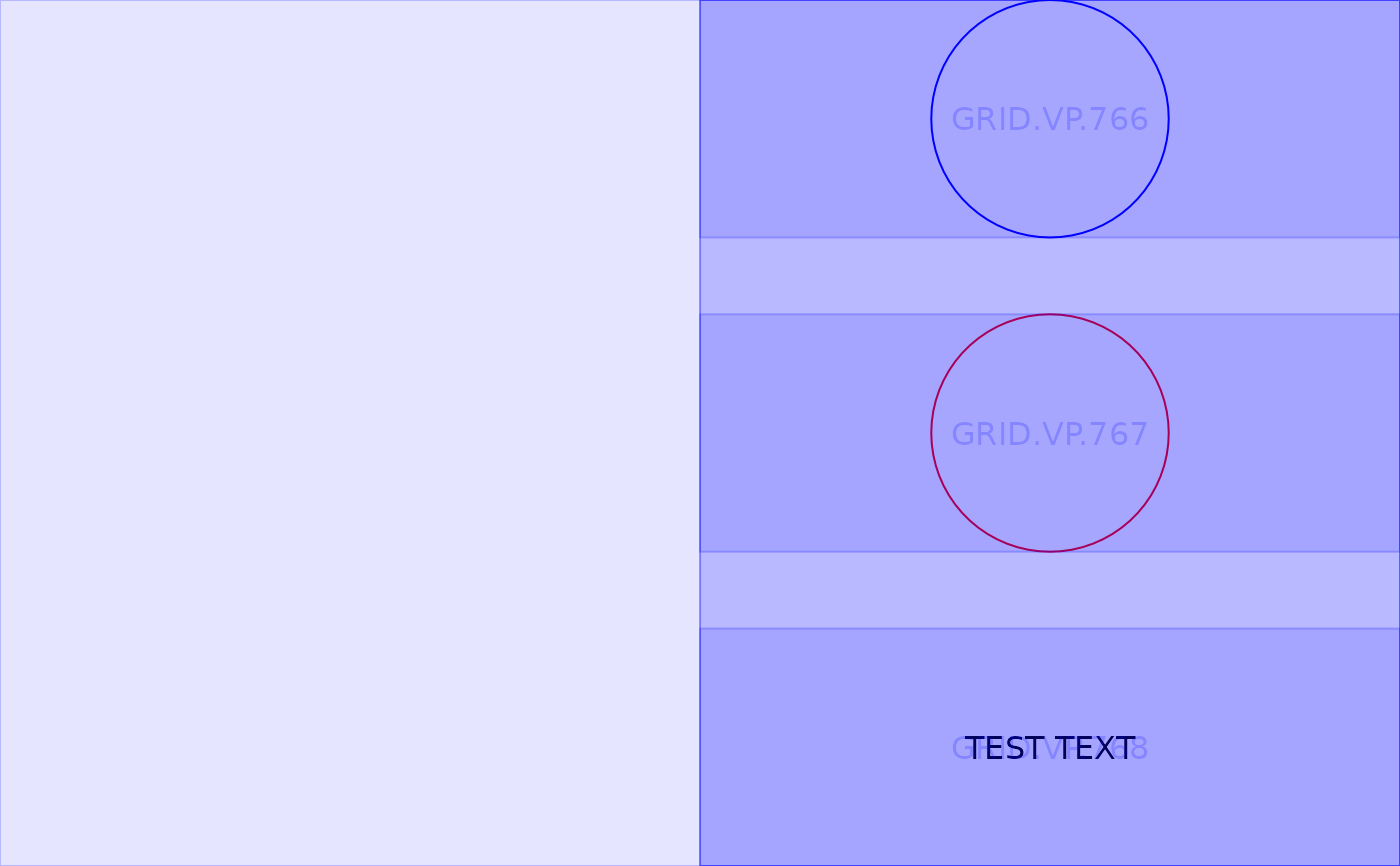

grid.newpage()
pushViewport(viewport(layout = grid.layout(1, 2)))
vp1 <- viewport(layout.pos.row = 1, layout.pos.col = 2)
grid.draw(stack_grobs(g1, g2, g3, vp = vp1, name = "test"))

showViewport()

grid.ls(grobs = TRUE, viewports = TRUE, print = FALSE)
