Arrange multiple grobs — arrange

Arrange grobs as a new grob with n * m (rows * cols) layout.

arrange_grobs(
  ...,
  grobs = list(...),
  ncol = NULL,
  nrow = NULL,
  padding_ht = grid::unit(2, "line"),
  padding_wt = grid::unit(2, "line"),
  vp = NULL,
  gp = NULL,
  name = NULL
)

Arguments

...: grobs.
grobs: (list of grob)
a list of grobs.
ncol: (integer(1))
number of columns in layout.
nrow: (integer(1))
number of rows in layout.
padding_ht: (grid::unit)
unit of length 1, vertical space between each grob.
padding_wt: (grid::unit)
unit of length 1, horizontal space between each grob.
vp: (viewport or NULL)
a viewport() object (or NULL).
gp: (gpar)
a gpar() object.
name: (string)
a character identifier for the grob.

Value

A grob.

Examples

library(grid)

# \donttest{

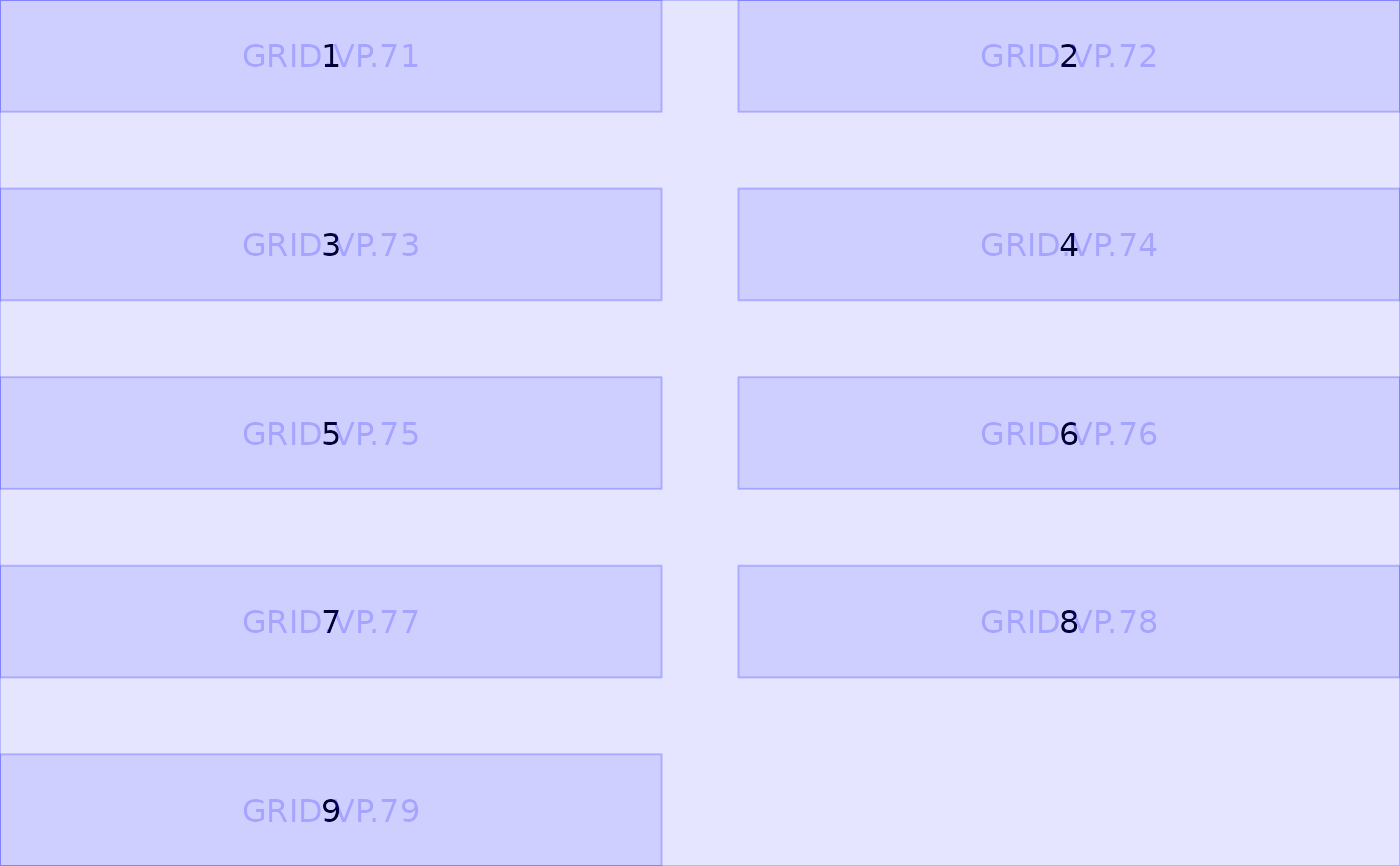

num <- lapply(1:9, textGrob)
grid::grid.newpage()
grid.draw(arrange_grobs(grobs = num, ncol = 2))
#> Warning: `arrange_grobs()` was deprecated in tern 0.9.4.
#> ℹ `tern` plotting functions no longer generate `grob` objects.

showViewport()


g1 <- circleGrob(gp = gpar(col = "blue"))
g2 <- circleGrob(gp = gpar(col = "red"))
g3 <- textGrob("TEST TEXT")

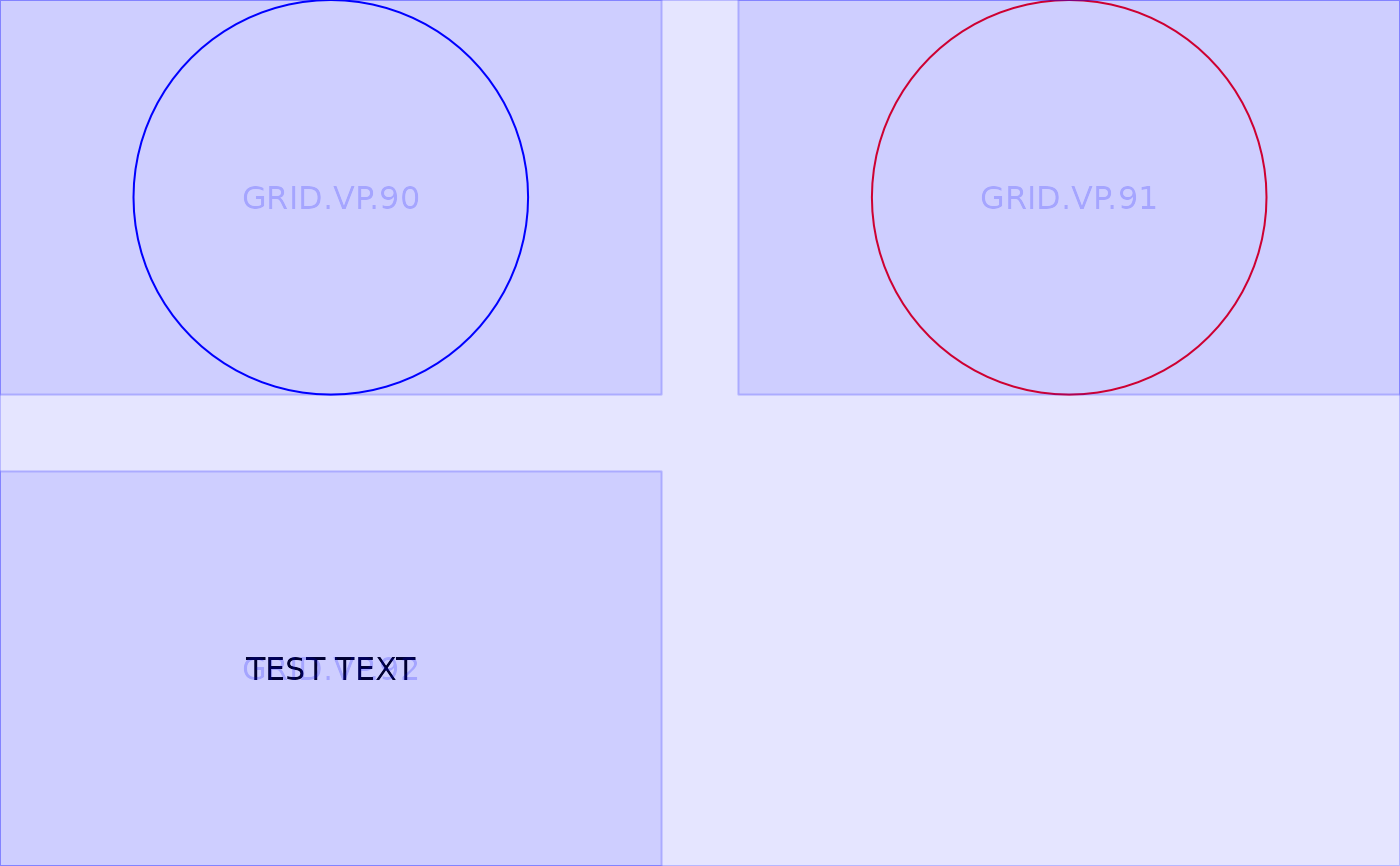

grid::grid.newpage()
grid.draw(arrange_grobs(g1, g2, g3, nrow = 2))

showViewport()


grid::grid.newpage()
grid.draw(arrange_grobs(g1, g2, g3, ncol = 3))

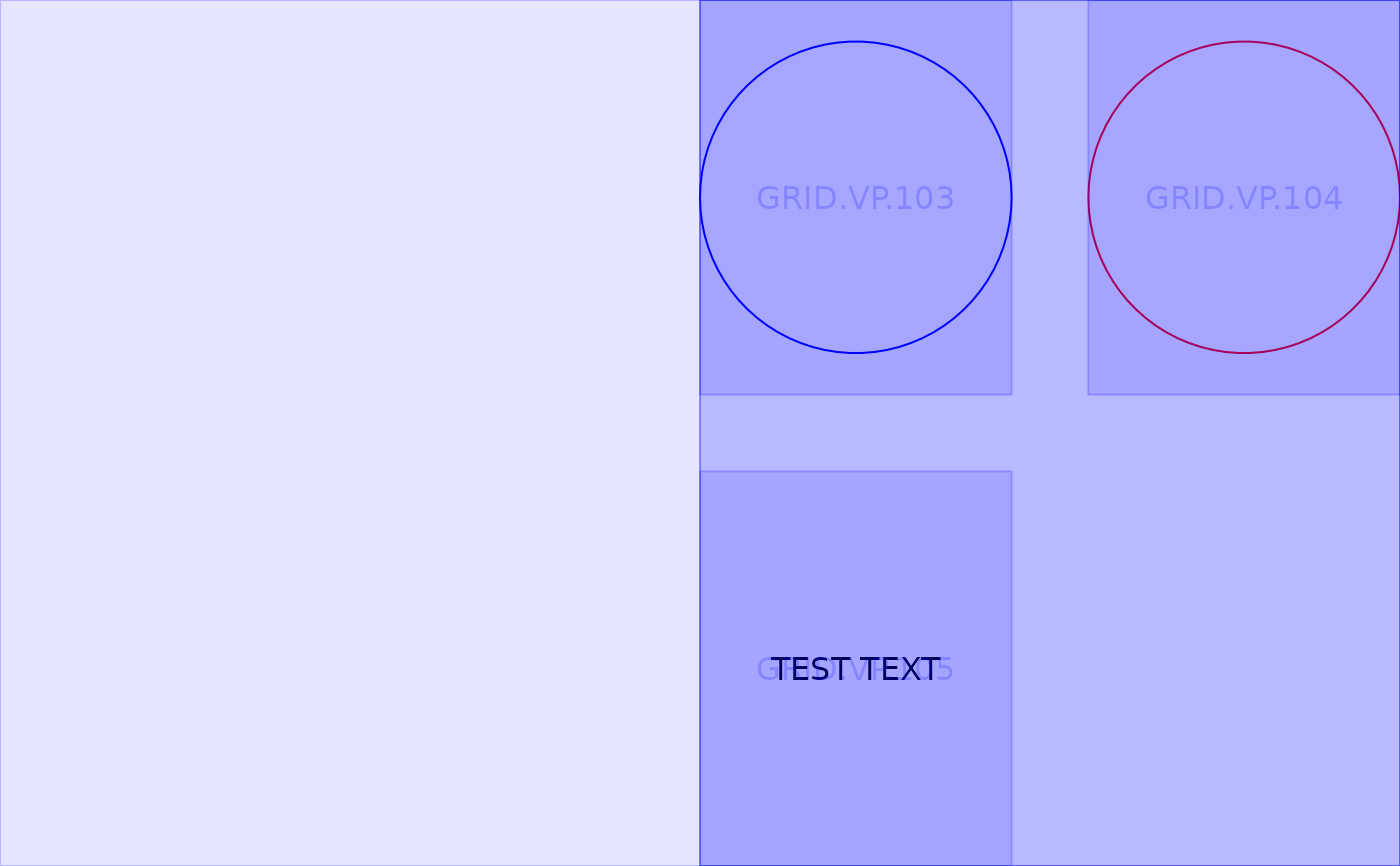

grid::grid.newpage()
grid::pushViewport(grid::viewport(layout = grid::grid.layout(1, 2)))
vp1 <- grid::viewport(layout.pos.row = 1, layout.pos.col = 2)
grid.draw(arrange_grobs(g1, g2, g3, ncol = 2, vp = vp1))

showViewport()

# }
