Encode a raster object as a data URI — raster2uri • plotly

Encode a raster object as a data URI, which is suitable for use with layout() images. This is especially convenient for embedding raster images on a plot in a self-contained fashion (i.e., so they don't depend on external URL links).

raster2uri(r, ...)

Arguments

r: an object coercable to a raster object via as.raster()
...: arguments passed onto as.raster().

References

https://plotly-r.com/embedding-images.html

Author

Carson Sievert

Examples

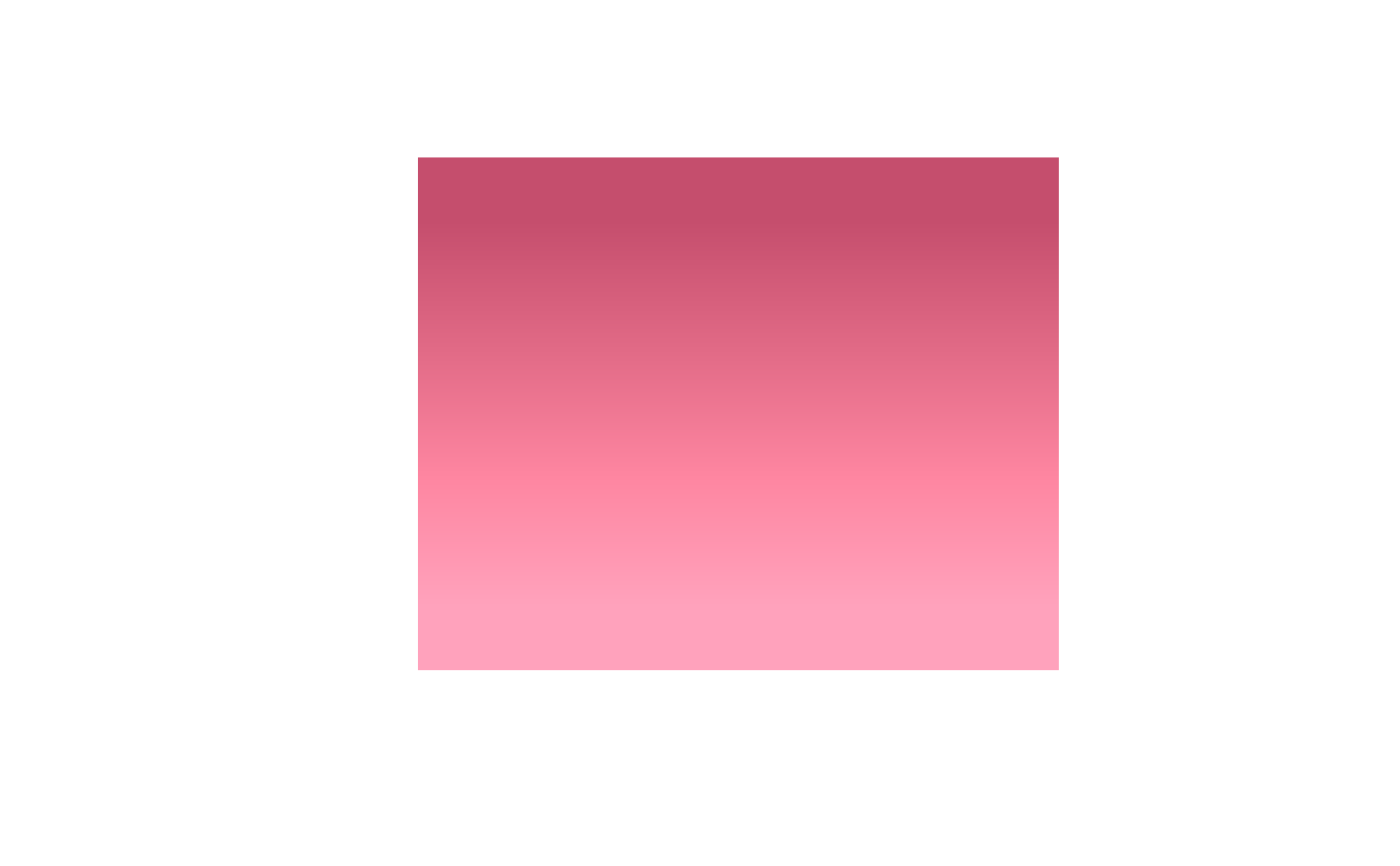

# a red gradient (from ?as.raster)
r <- as.raster(matrix(hcl(0, 80, seq(50, 80, 10)), nrow = 4, ncol = 5))
plot(r)


# embed the raster as an image
plot_ly(x = 1, y = 1) %>%
  layout(
    images = list(list(
     source = raster2uri(r),
     xref = "paper",
     yref = "paper",
     x = 0, y = 0,
     sizex = 0.5, sizey = 0.5,
     xanchor = "left", yanchor = "bottom"
  ))
 )
