Image Plot for Sparse Matrices

Display the pattern of non-zero entries of a matrix of class matrix.csr.

# S4 method for class 'matrix.csr'
image(x, col=c("white","gray"),
      xlab="column", ylab="row", ...)

Arguments

x

a matrix of class matrix.csr.

col

a list of colors such as that generated by rainbow. Defaults to c("white","gray")

xlab,ylab

each a character string giving the labels for the x and y axis.

...

additional arguments.

Details

The pattern of the non-zero entries of a sparse matrix is displayed. By default nonzero entries of the matrix appear as gray blocks and zero entries as white background.

References

Koenker, R and Ng, P. (2002). SparseM: A Sparse Matrix Package for R,
http://www.econ.uiuc.edu/~roger/research/home.html

See also

SparseM.ops, SparseM.solve, SparseM.ontology

Examples

a <- rnorm(20*5)
A <- matrix(a,20,5)
A[row(A)>col(A)+4|row(A)<col(A)+3] <- 0
b <- rnorm(20*5)
B <- matrix(b,20,5)
B[row(A)>col(A)+2|row(A)<col(A)+2] <- 0

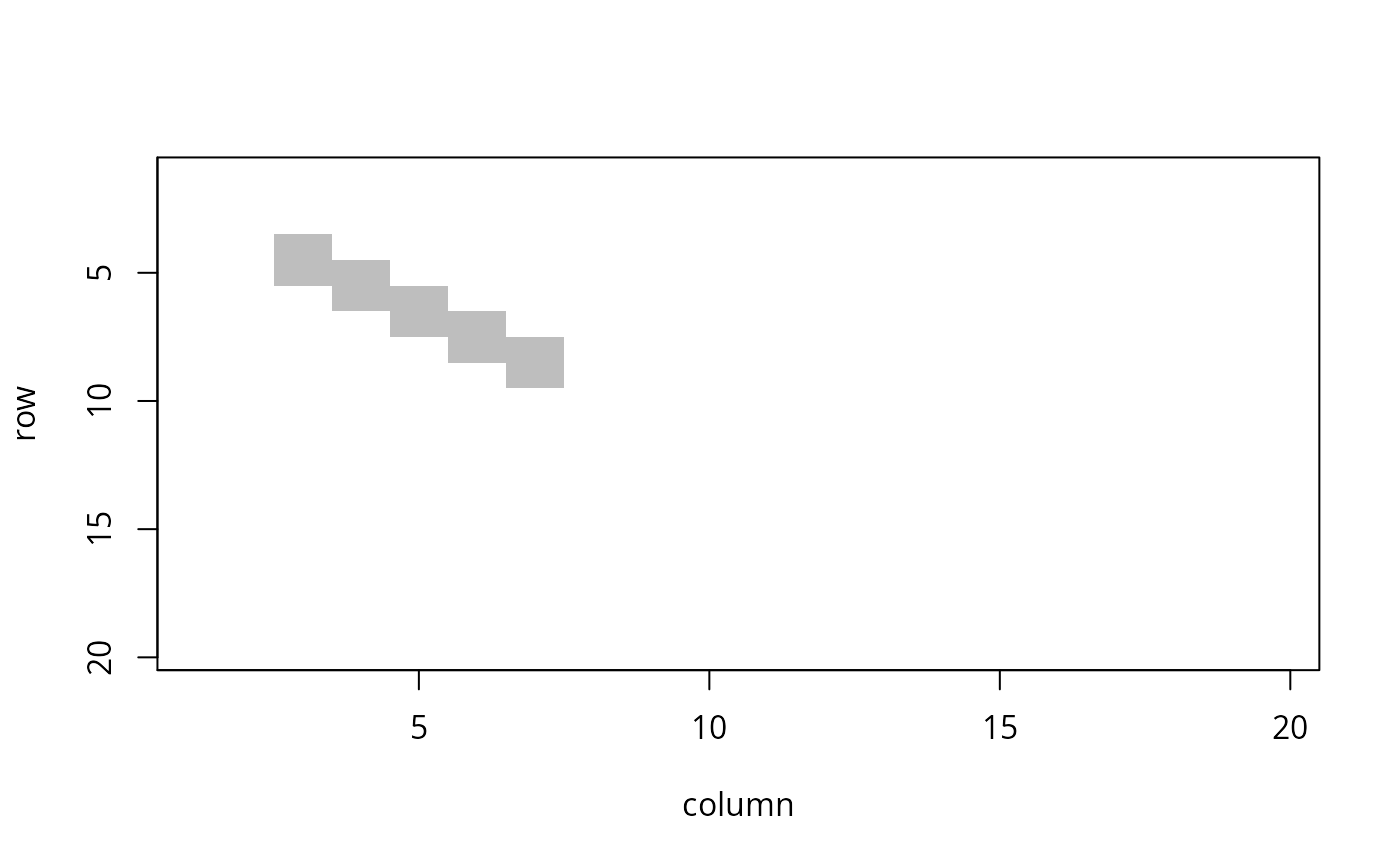

image(as.matrix.csr(A)%*%as.matrix.csr(t(B)))
